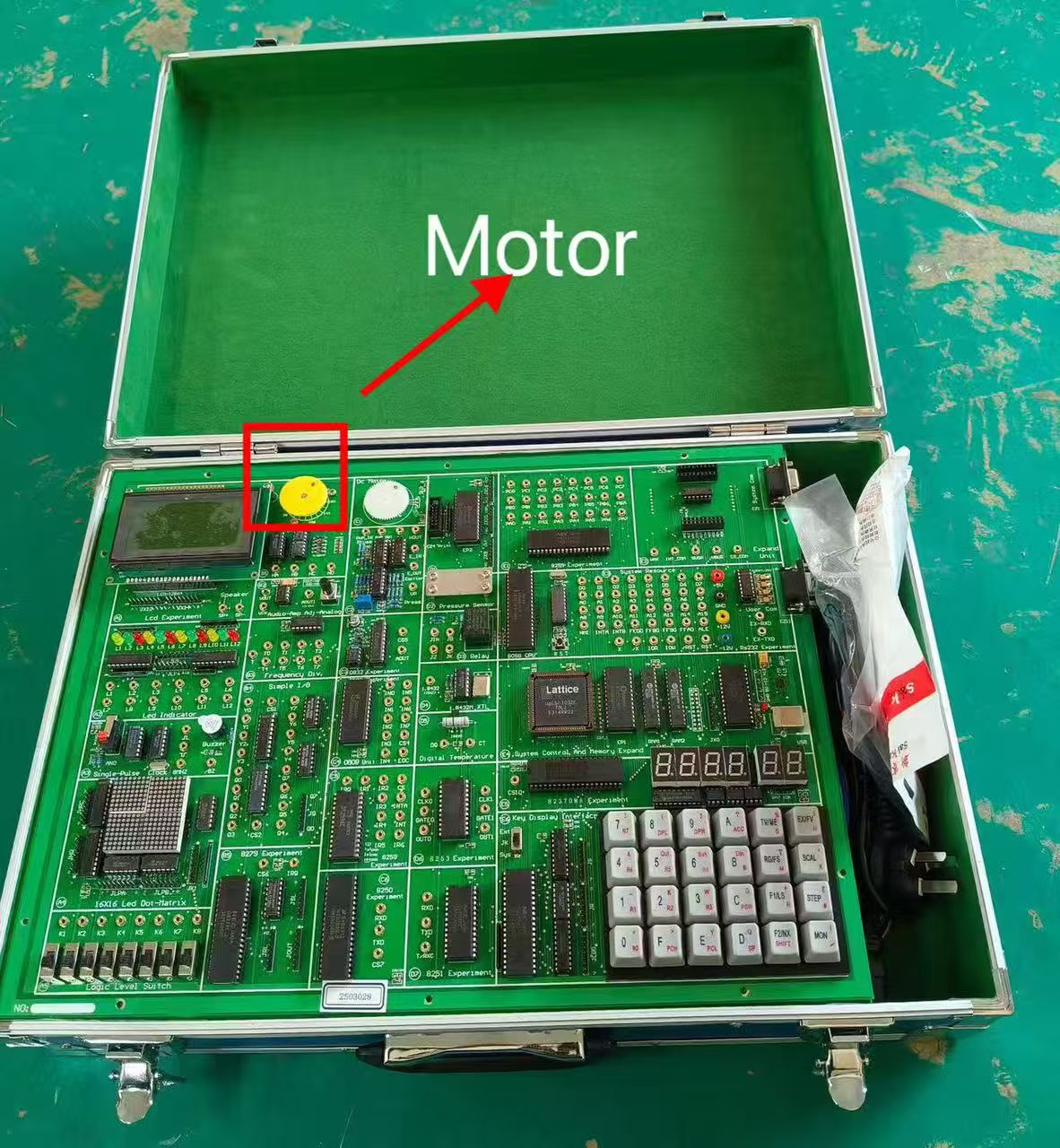

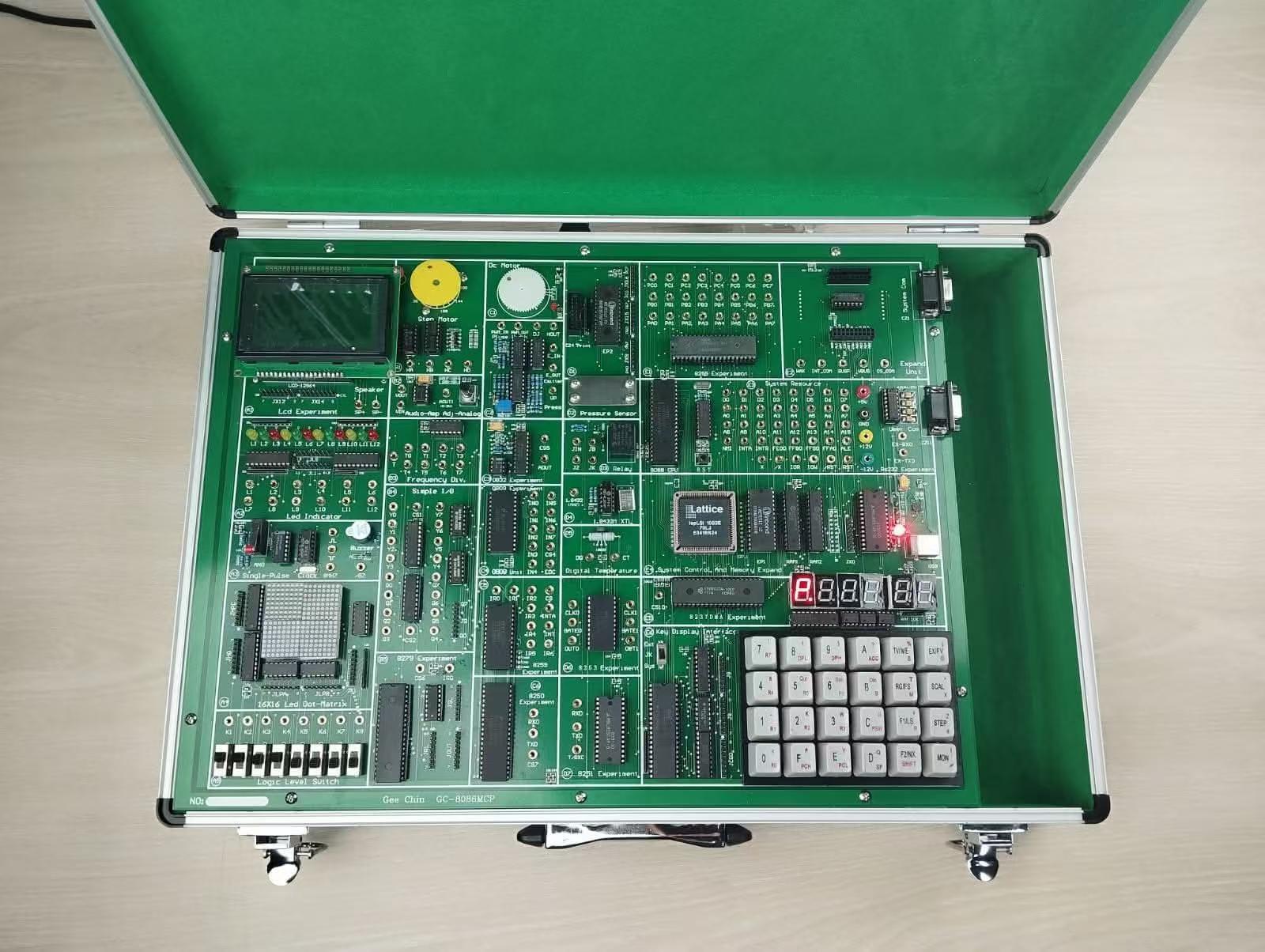

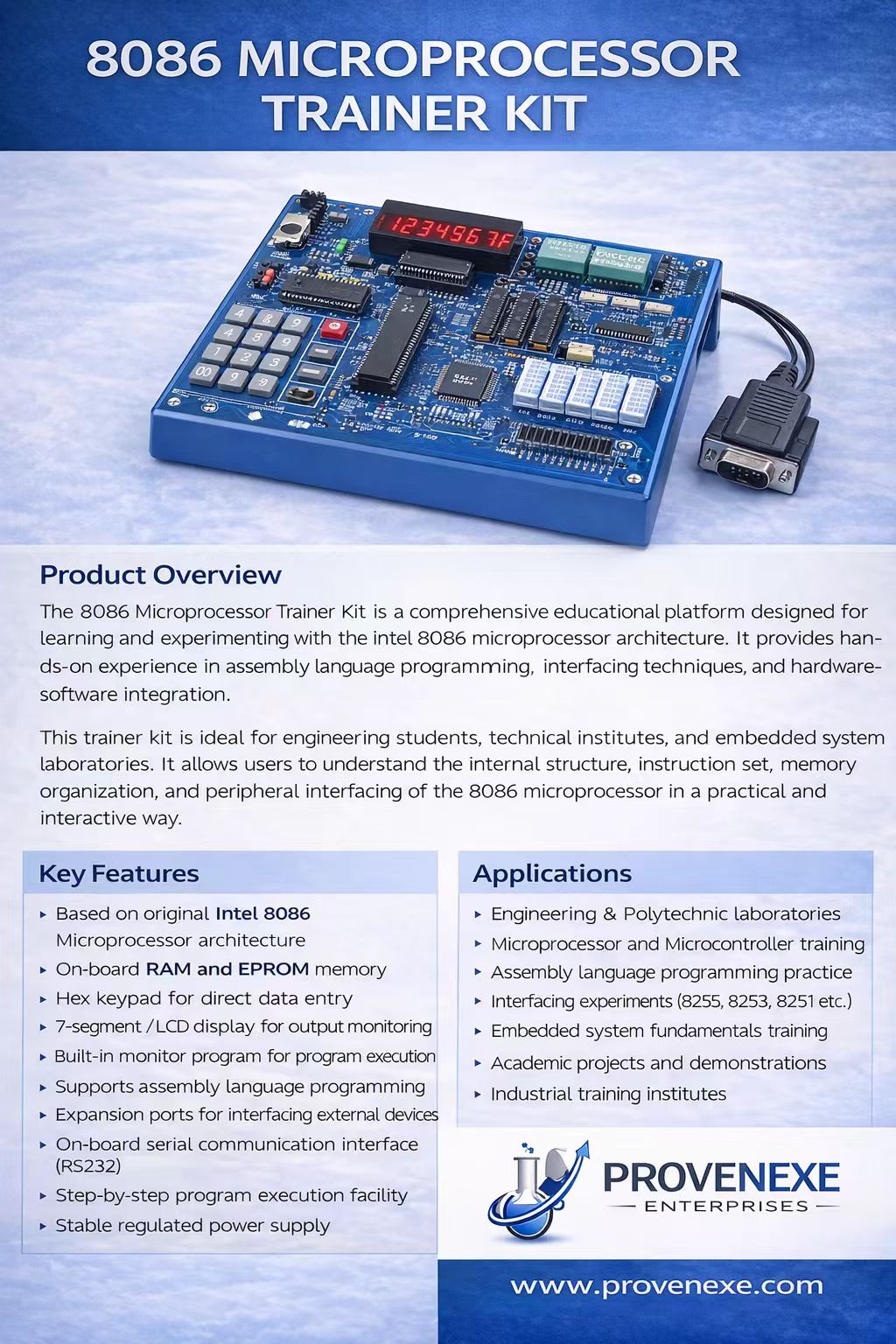

8086 Microprocessor Trainer Kit

Product Overview

The 8086 Microprocessor Trainer Kit is a comprehensive educational platform designed for learning and experimenting with the Intel 8086 microprocessor architecture. It provides hands-on experience in assembly language programming, interfacing techniques, and hardware-software integration.

The kit is ideal for engineering students, technical institutes, and embedded system laboratories.

Key Features

• Based on Intel 8086 Microprocessor architecture
• On-board RAM and EPROM memory
• Hex keypad for data entry
• 7-segment / LCD display for output monitoring
• Built-in monitor program for execution
• Supports assembly language programming
• Expansion ports for interfacing external devices
• On-board RS232 serial communication interface
• Step-by-step program execution facility
• Stable regulated power supply

Applications

• Engineering and Polytechnic laboratories
• Microprocessor and Microcontroller training
• Assembly language programming practice
• Interfacing experiments (8255, 8253, 8251 )
• Embedded system fundamentals training
• Academic projects and demonstrations
• Industrial training institutes
