Adjustable DC Regulated Power Supply
High Precision • Low Ripple • Digital Control
KORAD adjustable DC regulated power supplies are designed for laboratories, electronics manufacturing, R&D centers, education, and maintenance applications. They provide stable, accurate, and low-ripple DC output with multiple protection functions.

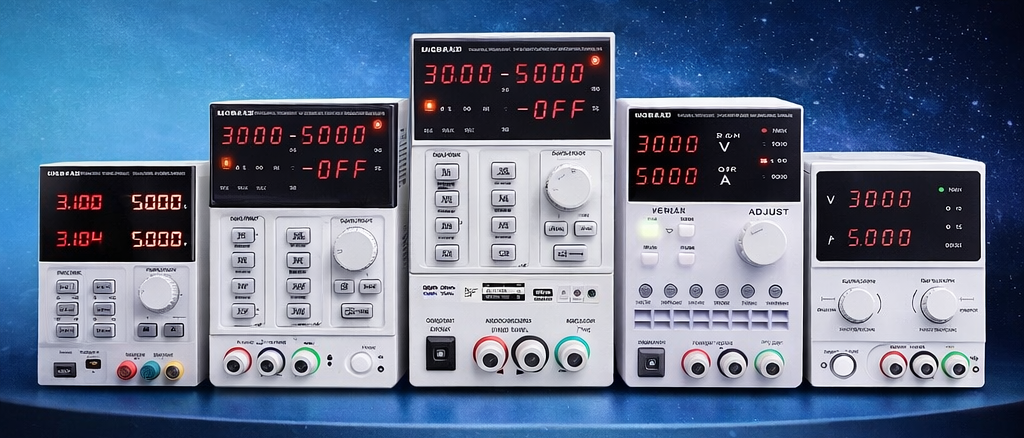

Product Series

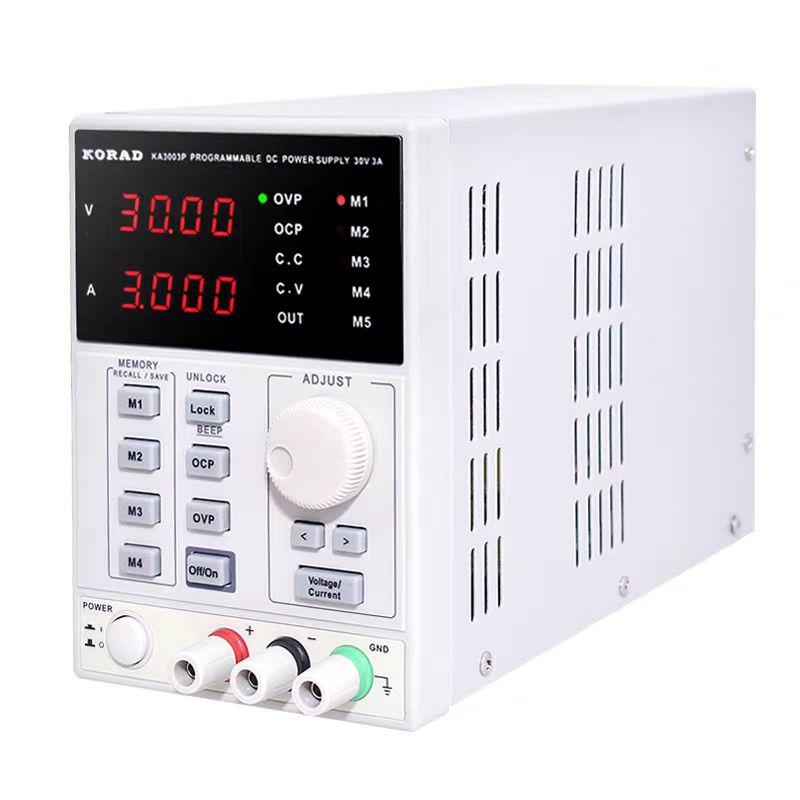

– KA3003D/P
– KA3005D/P
– KA3005DS/PS
– KA3010D/P
– KA6002/3D/P
– KA6005D/P
Key Features
– Adjustable voltage and current output
– Low ripple and low noise
– High accuracy digital control
– Independent voltage and current regulation
– Over-voltage and over-current protection
– Fast response time

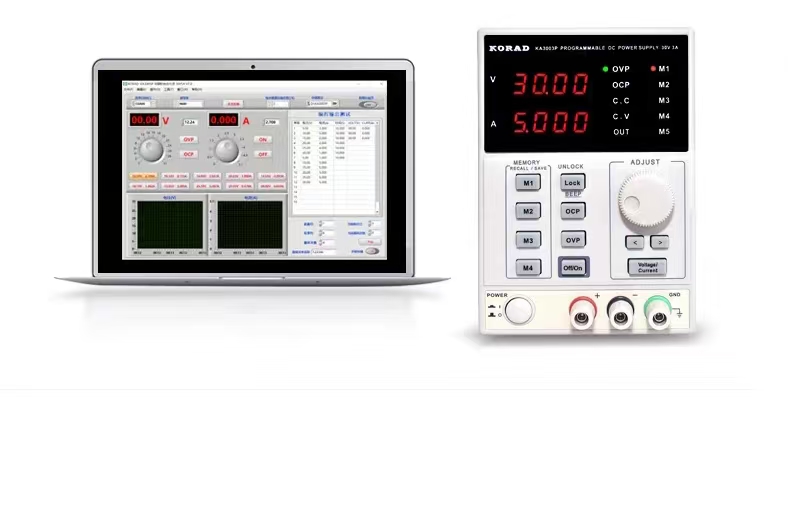

– Optional RS232 / USB interface (PS series)
Technical Specifications (Summary)
| Model | Voltage Range | Current Range |
| KA3003D/P | 0–30 V | 0–3 A |
| KA3005D/P | 0–30 V | 0–5 A |
| KA3005DS/PS | 0–30 V | 0–5 A |
| KA3010D/P | 0–30 V | 0–10 A |
| KA6002/3D/P | 0–60 V | 0–2 A / 3 A |
| KA6005D/P | 0–60 V | 0–5 A |
Applications
– Electronics laboratory testing
– R&D and product development
– Educational and training laboratories
– PCB testing and debugging
– Industrial maintenance
