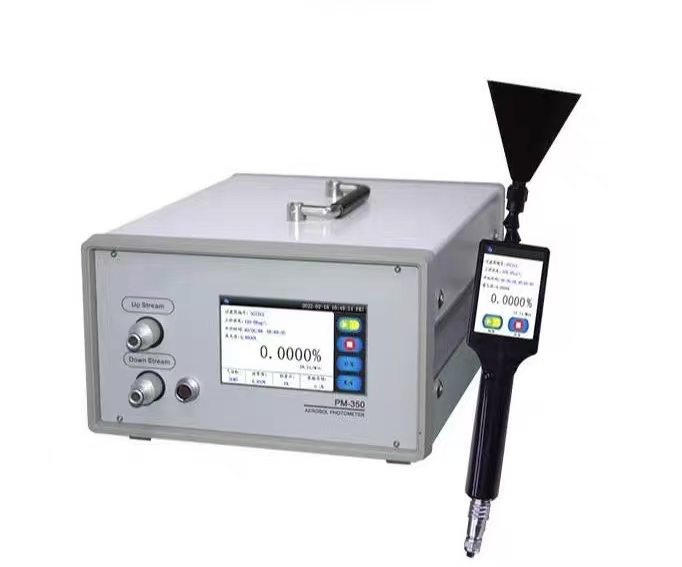

PM-350 Aerosol Photometer
Product Introduction

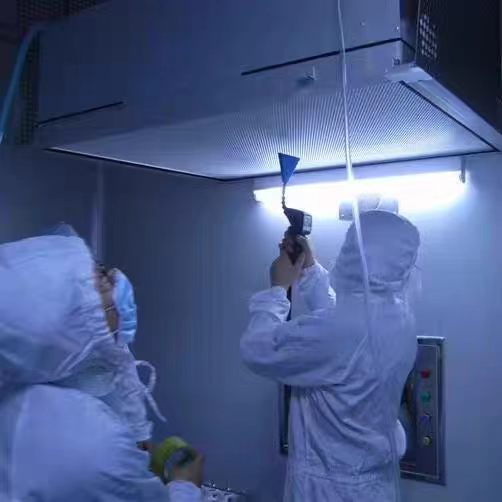

The PM-350 Aerosol Photometer is designed for pharmaceutical and food production enterprises to perform on-site leak testing of HEPA filters and filtration systems after installation. It is mainly used to inspect small pinholes and other damage in filter media, such as frame seals, gasket seals, and leaks in the filter structure.
The purpose of leak testing is to verify the sealing performance of HEPA filters and their connection to the installation frame, identify defects in the filters or installation process in time, and take corrective measures to ensure the cleanliness of the controlled area.
The PM-350 can automatically switch between upstream and downstream aerosol concentration measurements to determine whether the filter has leaks. The portable scanning probe allows operators to quickly and accurately locate leakage points in hard-to-reach areas and determine leakage ratios. When the leakage exceeds the alarm threshold, the display screen will activate an alarm.
Product Features
- Reasonable structural design, compact size, and easy portability.
- Main unit equipped with a 5-inch color touch screen for easier operation and faster data processing.
- Intuitive display of leakage rate and pump sampling speed data.
- Portable scanning probe with a 3.5-inch color display, one-button operation, and synchronized display with the main unit.
- Automatic upstream and downstream switching.
- Imported pump and light source used to ensure reliable and stable data.
- Filter numbering can be set.
- Alarm functions include leakage alarm and abnormal flow alarm.
Applications
HEPA filter validation, equipment certification, equipment monitoring, biosafety cabinets, clean benches, semiconductor industry, pharmaceutical industry, electronics industry, medical operating rooms, dust-free clean room filtration systems, pharmaceutical packaging and manufacturing, food processing, and scientific laboratories.
Technical Specifications
| Parameter | Specification |
| Product Name | Aerosol Photometer |
| Model | PM-350 |
| Display Range | 0.0001%–100.0% Color LCD Display |
| Dynamic Range | 0 mg/m³ – 120 mg/m³ |
| Accuracy | 1% of reading (0.01% to 100%) |
| Repeatability | 0.5% of reading (0.01% to 100%) |
| Flow Control | 1 cfm (28.3 L/min) ±5% |
| Auto Zero | Automatic zero setting |
| Alarm | Audible and visual alarms when preset limits are exceeded |
| Report Modes | Continuous mode, storage mode (up to 6000 data groups), print mode |
| Aerosol Types | PAO, DOP, DEHS and other polydisperse aerosols |
| Compliance Standards | NSF49, IEST, ISO14644, EN61010-1:2010, EN61326-1:2006 |
| Power Supply | AC 220V 50/60Hz |
| Dimensions | 258 (L) × 178 (W) × 360 (D) mm |
| Weight | 9.8 kg (main unit), 10.3 kg (main unit with scanning probe) |
