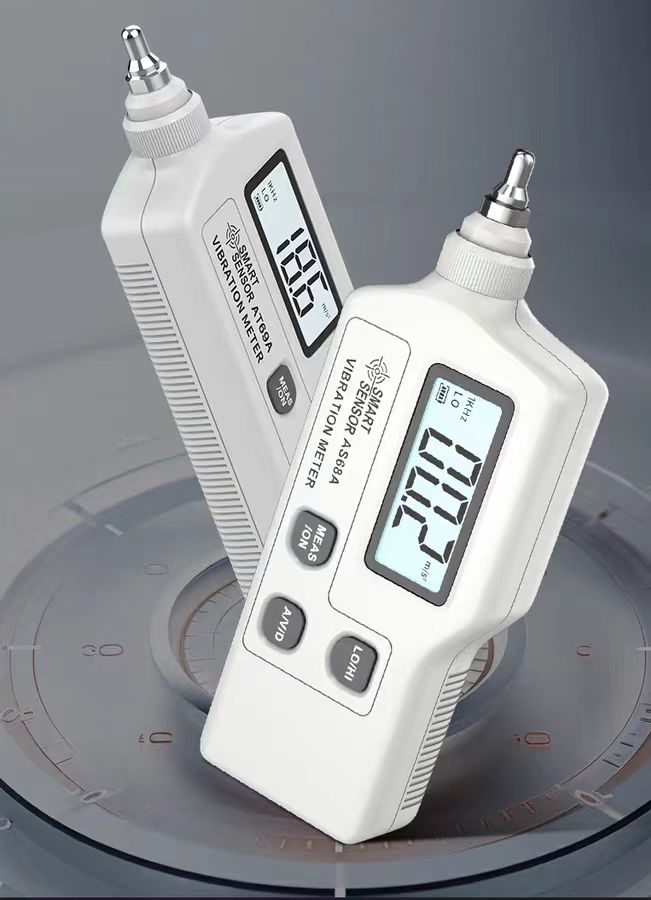

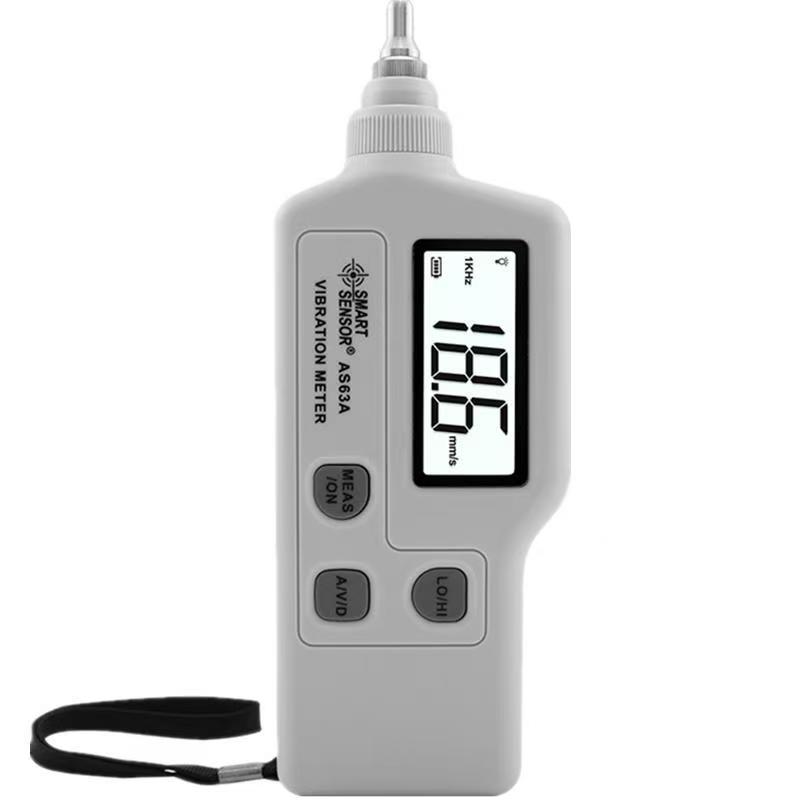

AR63 Series Vibration Meter
Product Overview
The AR63 Series Vibration Meter is a precision tool designed for measuring vibrations in machinery and equipment. Available in four models (AR63A, AR63B, AR63C, and AR63D), each provides accurate vibration data in mm/s or in/s. The AR63 Series is ideal for use in preventive maintenance programs to monitor and analyze vibration levels in industrial machinery, HVAC systems, and automotive applications.
– AR63A is perfect for general industrial use and standard vibration monitoring.
– AR63B offers enhanced accuracy for field use in engineering and machinery applications.
– AR63C provides high precision for engineering teams and laboratory environments.
– AR63D is the top-tier model for high-precision diagnostic applications in demanding industrial settings.
Key Features
- Wide Measurement Range: From 0.1 mm/s to 199.9 mm/s, suitable for a variety of equipment.
- Frequency Range: Measures vibrations with a frequency range of 10Hz to 1kHz.
- Clear Display: LCD digital readout for easy-to-read measurements in both mm/s and in/s units.
- Data Hold Function: Allows freezing of measurement for recording and referencing.
- Portable Design: Compact and lightweight for easy transport and field usage.
- Battery-Powered: Uses a 9V battery, offering extended battery life for long-term use in the field.
- Models Comparison: AR63A, AR63B, AR63C, and AR63D have specific features based on the required application.
Applications
- General Industry: Suitable for monitoring vibration in motors, pumps, fans, and generators.
- Engineering & R&D: Used by engineers for precise vibration analysis in manufacturing plants, testing labs, and research environments.
- Automotive: Ideal for testing automotive systems, engines, and drivetrains.
- HVAC Systems: Efficiently checks for abnormal vibrations in air conditioning, heating systems, and ventilation.
- Preventive Maintenance: Early detection of faults and vibration-related issues before equipment failure occurs in industrial machinery and production lines.
- Fleet Maintenance: Helps with vibration diagnostics in vehicles to ensure safe and efficient operation.
Technical Specifications
| Parameter | Specification |
| Measurement Range | 0.1–199.9 mm/s |
| Frequency Range | 10Hz – 1kHz |
| Units | mm/s, in/s |
| Accuracy | ±(1.5% + 2d) |
| Display Type | LCD Display |
| Battery | 9V Battery |
| Data Hold Function | Yes |
| Weight | 300g |
| Size | 200 x 70 x 40mm |
| Temperature Range | 0°C – 40°C |
| Special Features | General use, Enhanced accuracy, High precision, Advanced diagnostics |
| Ideal for | Standard industrial use, Field applications, Engineering precision, High-precision diagnostics |
Models Comparison
| Feature | AR63A | AR63B | AR63C | AR63D |
| Measurement Range | 0.1–199.9 mm/s | 0.1–199.9 mm/s | 0.1–199.9 mm/s | 0.1–199.9 mm/s |
| Frequency Range | 10Hz – 1kHz | 10Hz – 1kHz | 10Hz – 1kHz | 10Hz – 1kHz |
| Units | mm/s, in/s | mm/s, in/s | mm/s, in/s | mm/s, in/s |
| Accuracy | ±(1.5% + 2d) | ±(1.5% + 2d) | ±(1.5% + 2d) | ±(1.5% + 2d) |
| Display Type | LCD Display | LCD Display | LCD Display | LCD Display |
| Battery | 9V Battery | 9V Battery | 9V Battery | 9V Battery |
| Data Hold Function | Yes | Yes | Yes | Yes |
| Weight | 300g | 300g | 300g | 300g |
| Size | 200 x 70 x 40mm | 200 x 70 x 40mm | 200 x 70 x 40mm | 200 x 70 x 40mm |
| Temperature Range | 0°C – 40°C | 0°C – 40°C | 0°C – 40°C | 0°C – 40°C |
| Special Features | General use | Enhanced accuracy | High precision | Advanced diagnostics |
| Ideal for | Standard industrial use | Field applications | Engineering precision | High-precision diagnostics |
