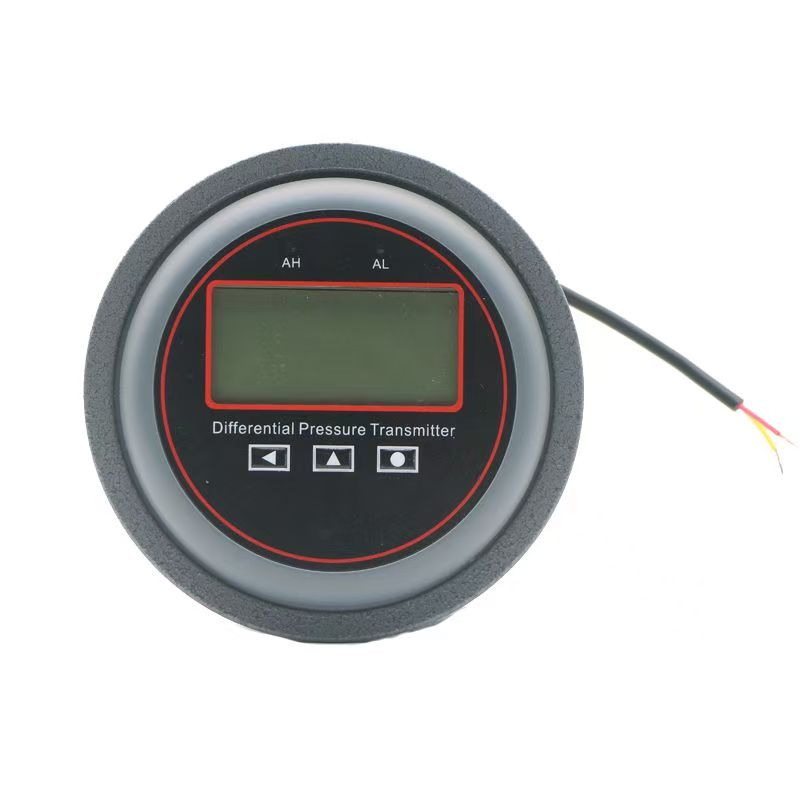

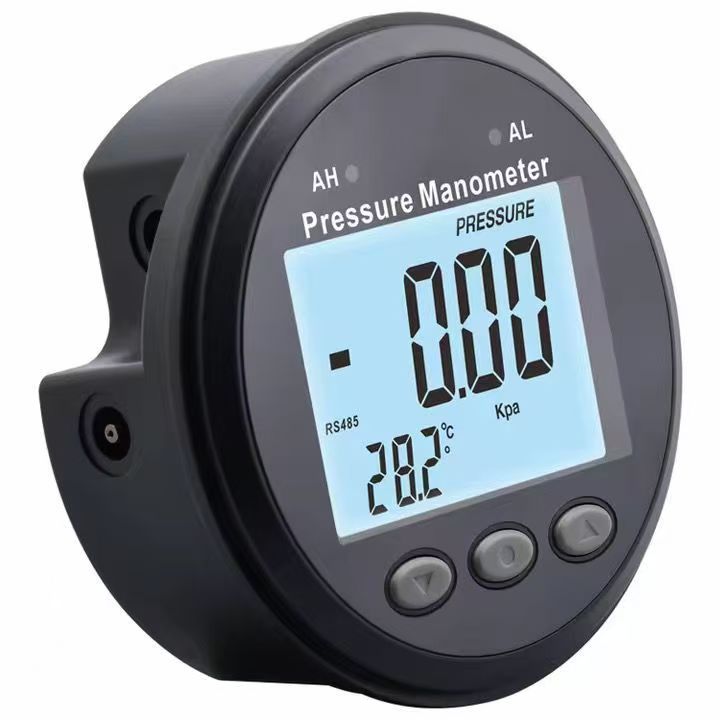

Digital Differential Pressure Gauge / Digital Differential Pressure Transmitter
Product Overview
The Differential Pressure Gauge / Differential Pressure Transmitter is a high-precision digital instrument designed for accurate monitoring of air and non-corrosive gas pressure differences. It is widely used in cleanrooms, HVAC systems, laboratories, and industrial environments.
Applications
- Pharmaceutical cleanrooms
- Electronics & semiconductor cleanrooms
- Hospitals & isolation rooms
- HVAC & air filtration systems
- Dust collection & ventilation systems
- Industrial process control
Technical Specifications
| Parameter | Specification |
| Measurement Type | Differential Pressure |
| Measurement Range | ±100 Pa to ±10 kPa |
| Accuracy | ±1.0% F.S (Optional ±0.5%) |
| Medium | Air / Non-corrosive gases |
| Display | LCD Digital Display |
| Alarm | High & Low Alarm |
| Output | RS485 (Modbus RTU) |
| Response Time | ≤ 1 second |
| Operating Temperature | -10°C to +60°C |

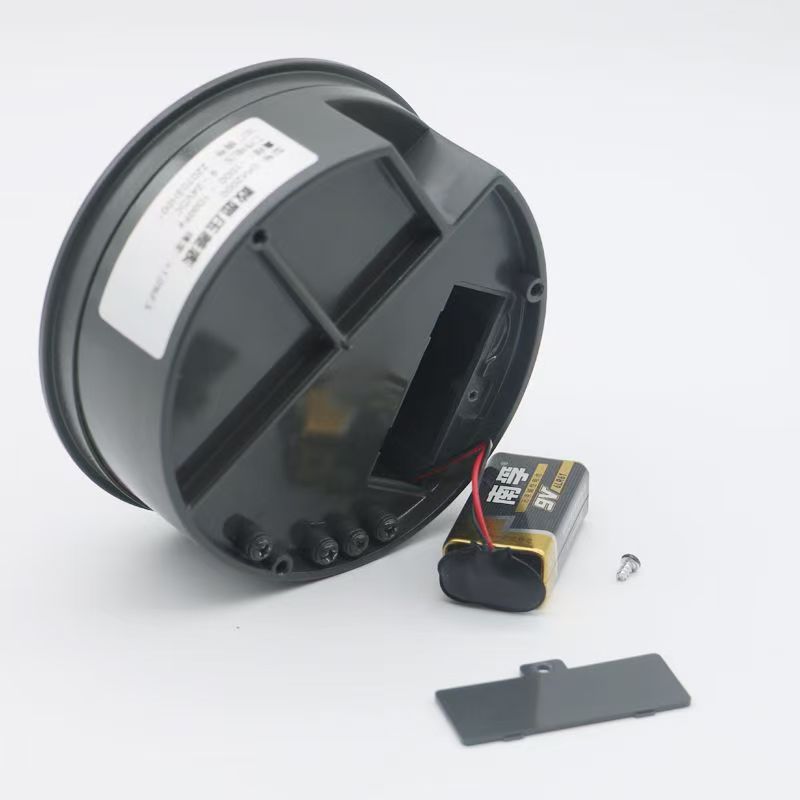

Power Supply Options
- 9V DC
- 12V DC
- 24V DC
- 220V AC

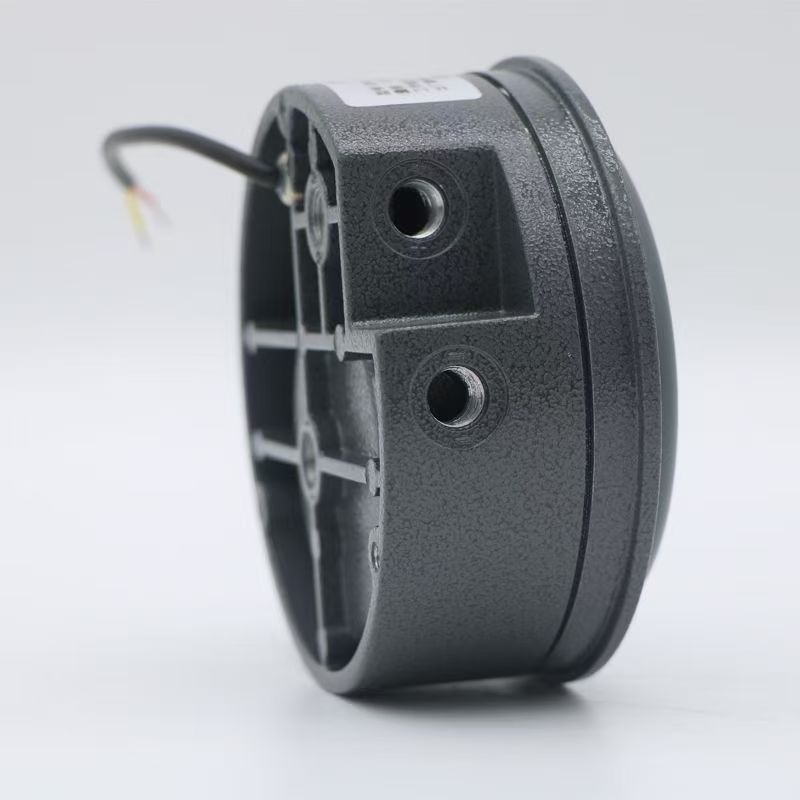

Body Material Options
- Aluminum Housing – Industrial grade
- Plastic Housing – Lightweight & economical
