Filtration Assembly

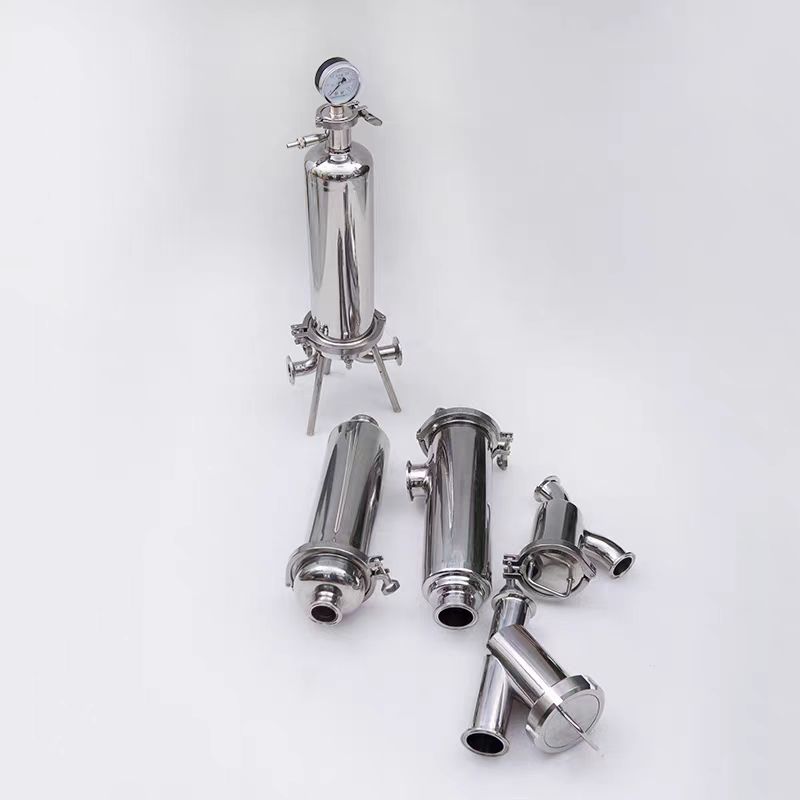

Microporous Membrane Filter Housing

Product Overview

The Sanitary Filtration Assembly is a stainless-steel filtration system designed for high-purity liquid filtration and sterilization. It uses microporous membrane filter cartridges to effectively remove particles, bacteria, and impurities from liquids.

Manufactured with hygienic-grade stainless steel and polished internal surfaces, this filtration assembly meets the strict requirements of food, beverage, pharmaceutical, chemical, and biotechnology industries.



Key Features

Sanitary-grade stainless steel construction (SS304 / SS316L)

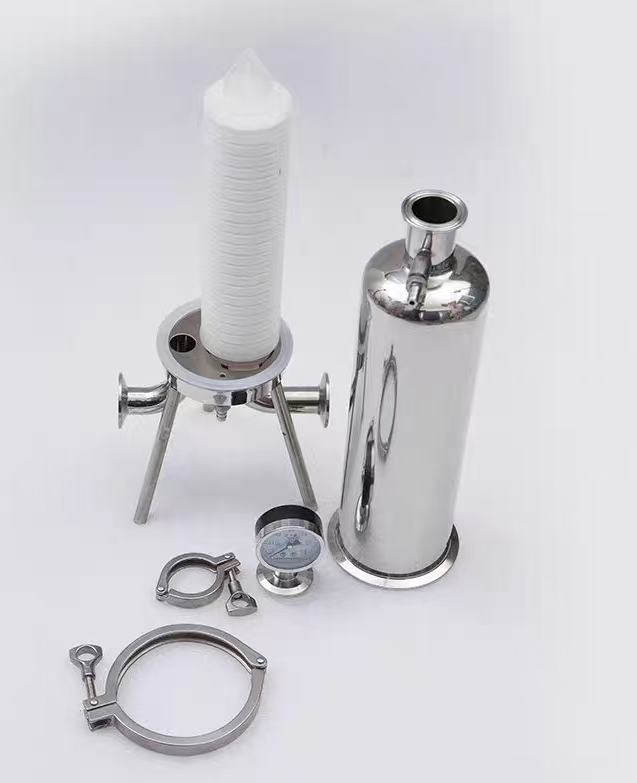

Compatible with microporous membrane filter cartridges

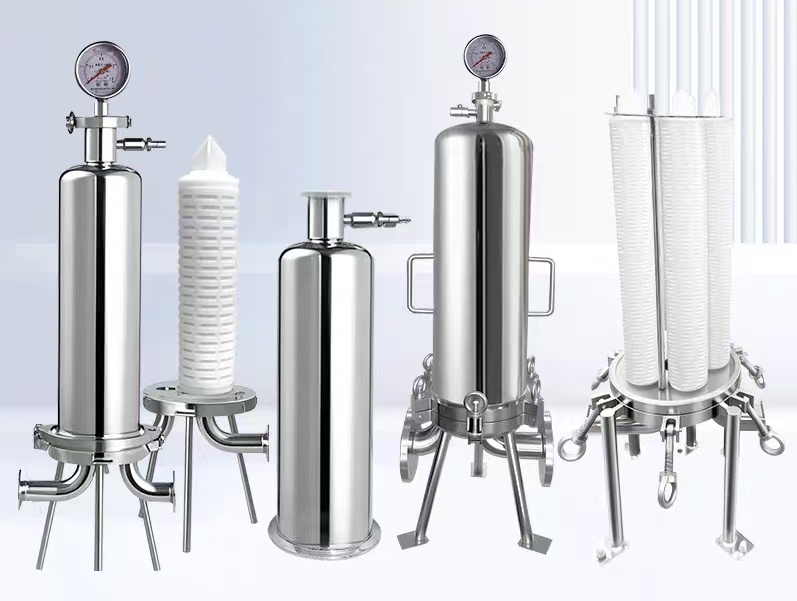

Single-core and multi-core configurations available

Smooth internal & external mirror polishing

High pressure resistance and corrosion resistance

Easy disassembly and cartridge replacement

Suitable for sterilization and aseptic processes

Customizable inlet/outlet connections



Filter Core Options

1 Core

3 Cores

5 Cores

7 Cores

12 Cores

15 Cores

(Flow rate increases according to the number of filter cores installed.)



Technical Specifications

Parameter	Specification
Product Type	Microporous Membrane Filtration Assembly
Housing Material	SS304 / SS316L
Surface Finish	Mirror polished (internal & external)
Filter Cartridge Type	Microporous membrane
Cartridge Length	10″, 20″, 30″, 40″
Number of Cartridges	1 / 3 / 5 / 7 / 12 / 15
Filtration Accuracy	0.1 μm – 5 μm (optional)
Operating Pressure	Up to 0.6 MPa
Operating Temperature	≤ 80°C (customizable)
Connection Type	Tri-clamp / Flange / Thread
Inlet / Outlet	Customizable
Pressure Gauge	Optional
Vent / Drain Port	Included



Typical Flow Capacity (Water Medium)

Configuration	Approx. Flow Rate
10″ × 1 Core	~0.5 T/hour
20″ × 1 Core	~1.0 T/hour
20″ × 3 Cores	~3.0 T/hour
20″ × 5 Cores	~5.0 T/hour

(Flow rate varies depending on liquid viscosity and filter rating.)



Applications

Food & Beverage processing

Pharmaceutical manufacturing

Chemical processing

Cosmetics production

Biotechnology

Drinking water & mineral water

Brewing & beverage clarification

Medical and laboratory filtration



Advantages

Ensures high-level liquid purity

Improves product quality and shelf life

Reduces microbial contamination

Long service life and low maintenance

Flexible design for different production capacities

Complies with sanitary and hygienic standards



Customization Available

Non-standard sizes

Multi-core configurations

Different filtration accuracies

Custom inlet/outlet orientation

Optional pressure gauge & vent valve
