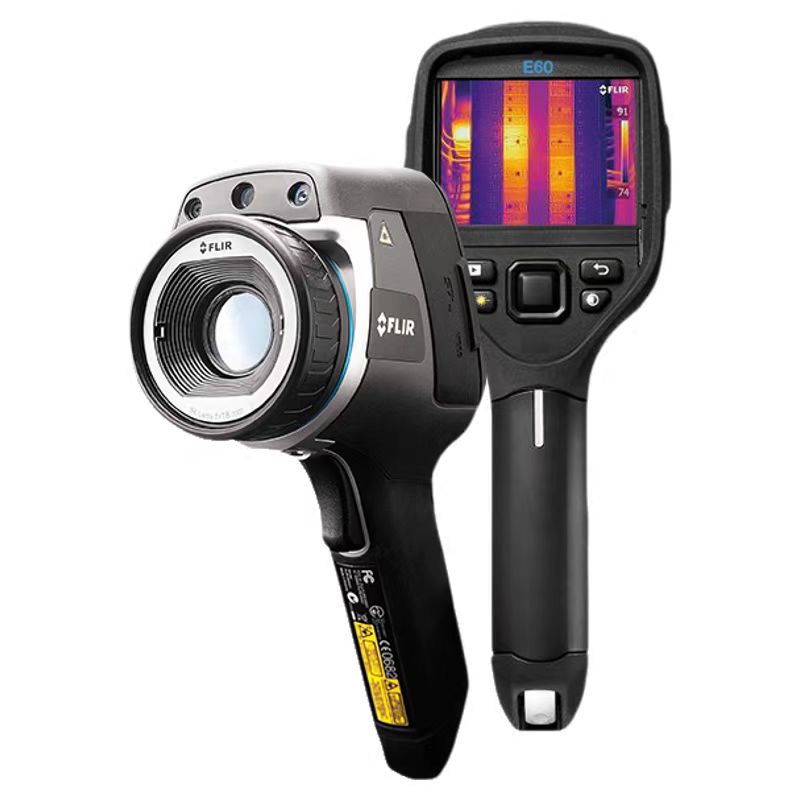

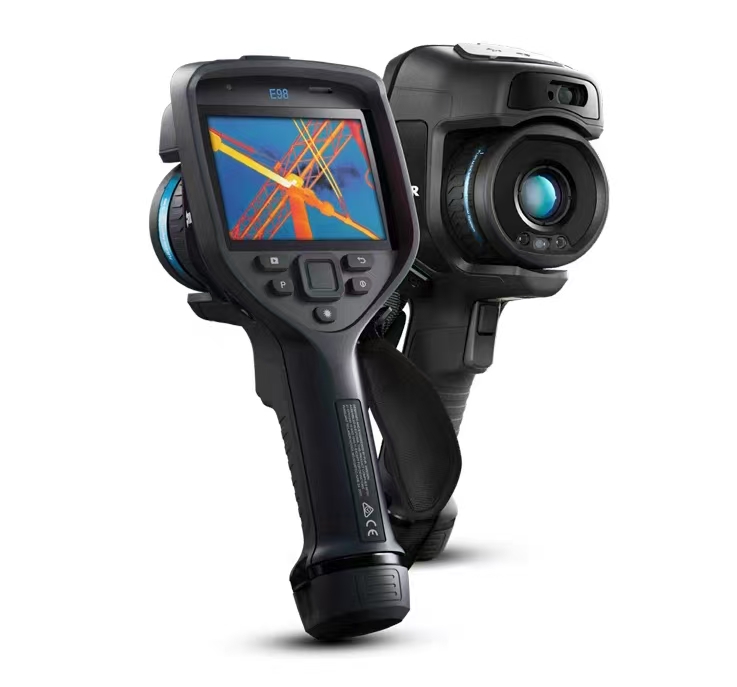

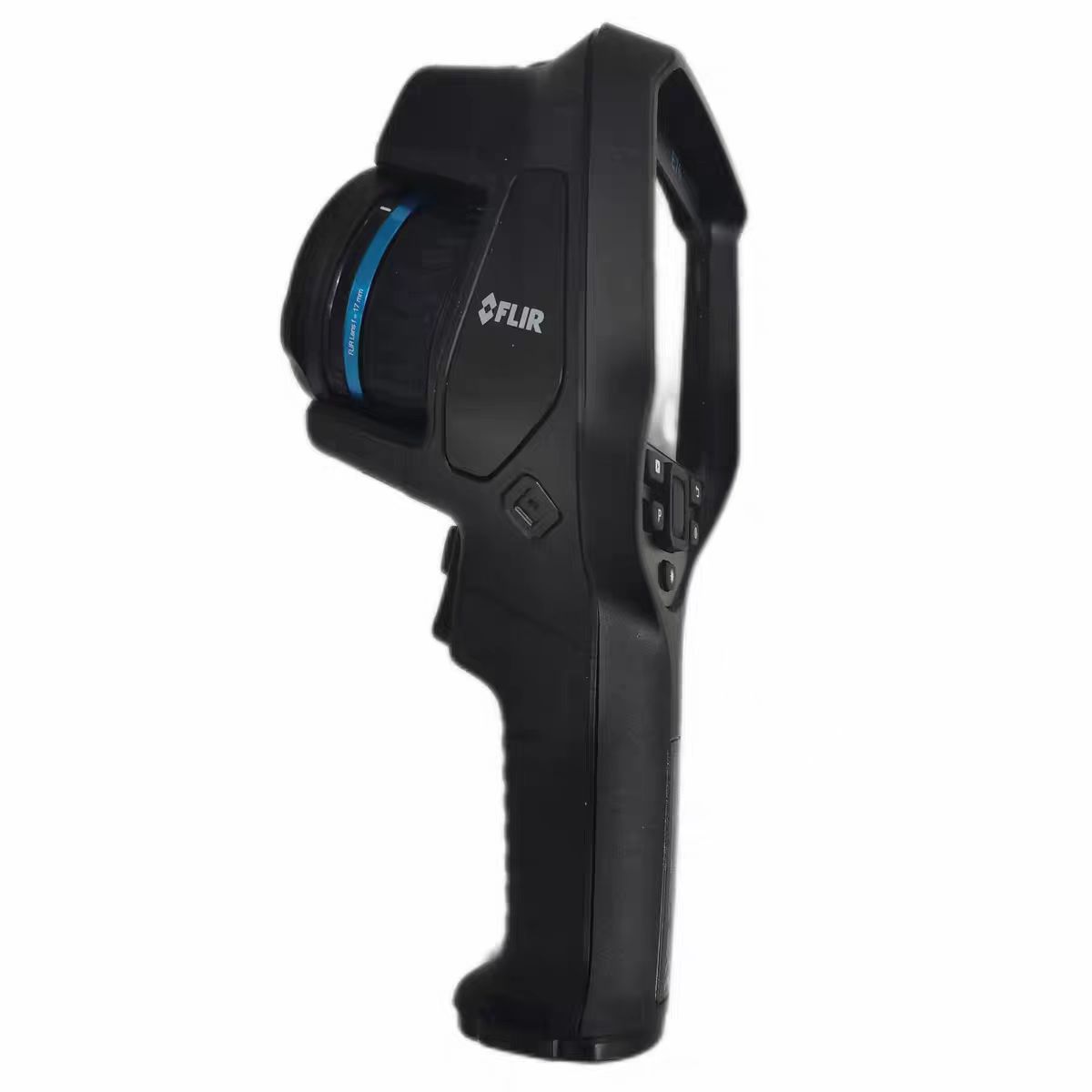

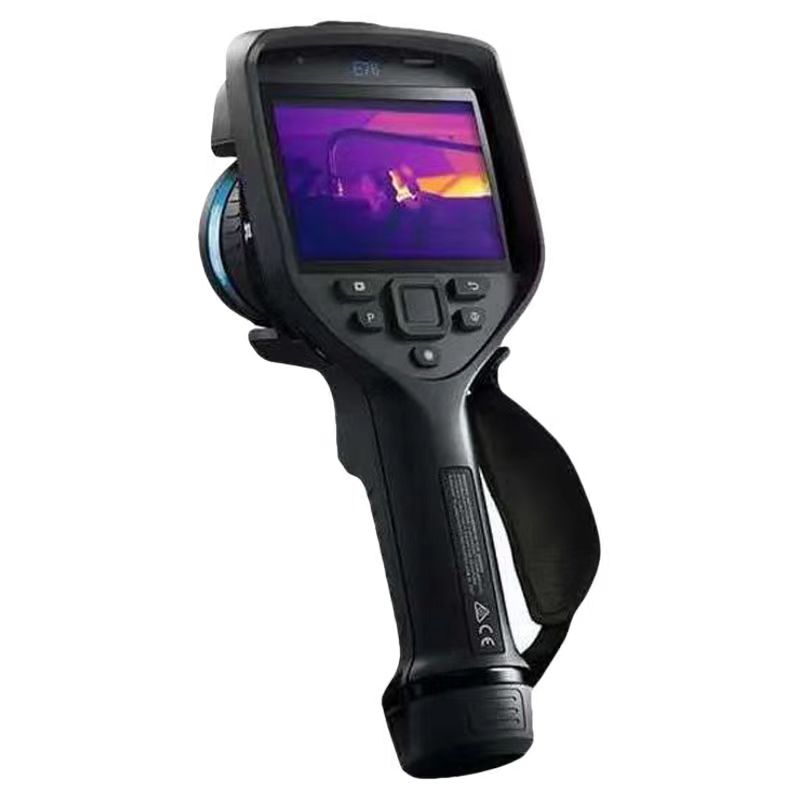

FLIR E-Series Thermal Imaging Cameras
Product Overview
The FLIR E-Series (E76, E86, E96) are professional-grade thermal imaging cameras designed for electrical, mechanical, and building inspections. These cameras combine high thermal resolution, advanced measurement tools, MSX® image enhancement, and robust connectivity to deliver accurate diagnostics and reliable reporting in demanding industrial environments.
Technical Specifications Comparison
Thermal Imaging Performance
| Specification |
E76 |
E86 |
E96 |
| IR Resolution |
320 × 240 (76,800 pixels) |
464 × 348 (161,472 pixels) |
640 × 480 (307,200 pixels) |
| UltraMax® Resolution |
Up to 640 × 480 |
Up to 928 × 696 |
Up to 1280 × 960 |
| Pixel Pitch |
17 µm |
17 µm |
12 µm |
| Thermal Sensitivity (NETD) |
< 0.03°C @ 30°C (42° lens) |
< 0.03°C @ 30°C (42° lens) |
< 0.03°C @ 30°C (42° lens) |
| Spatial Resolution (24° lens) |
1.31 mrad |
0.90 mrad |
0.66 mrad |
Temperature Measurement
| Specification |
E76 |
E86 |
E96 |
| Object Temperature Range |
-20°C to 120°C | 0°C to 650°C | Optional 300°C to 1000°C |
-20°C to 120°C | 0°C to 650°C | 300°C to 1500°C |
-20°C to 120°C | 0°C to 650°C | 300°C to 1500°C |
| Accuracy |
±2°C or ±2% of reading |
±2°C or ±2% of reading |
±2°C or ±2% of reading |
Focus & Optics
| Specification |
E76 |
E86 |
E96 |
| Focus Modes |
Continuous laser-assisted auto focus, single-shot laser focus, contrast focus, manual |
Same as E76 |
Same as E76 |
| Digital Zoom |
1–4× continuous |
1–4× continuous |
1–8× continuous |

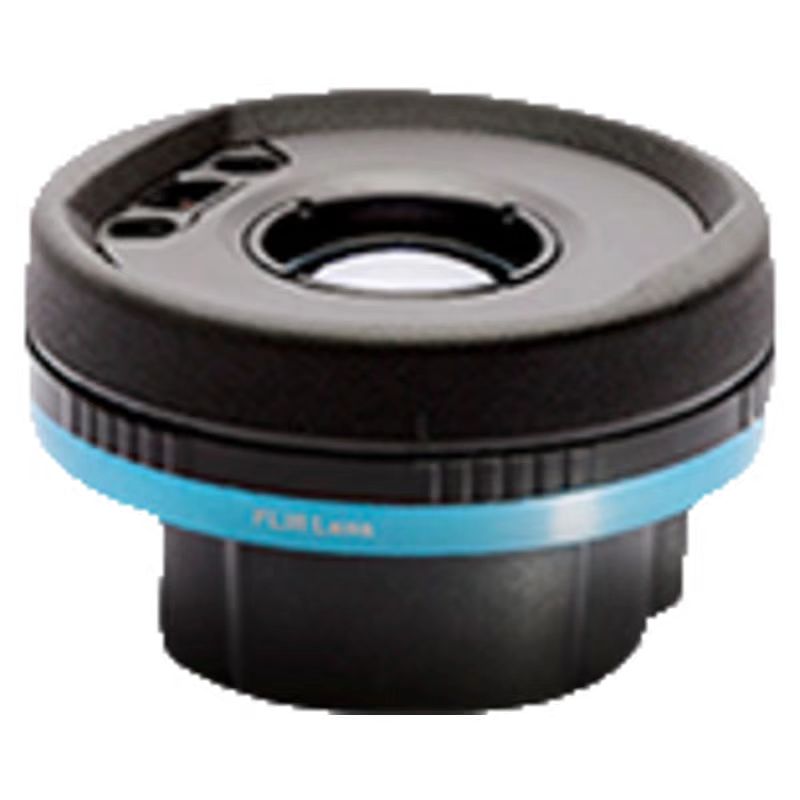

| Available Lenses |
42°, 24°, 14°, 6°, Dual FOV (14°+24°), 2× Macro |
Same |
Same |
| Smart AutoCal™ Lenses |
Supported |
Supported |
Supported |
Measurement Tools
| Specification |
E76 |
E86 |
E96 |
| Measurement Presets |
No measurement, Center spot, Hot spot, Cold spot, User presets (1 & 2) |
Same |
Same |
| Spot Measurements |
3 real-time spots |
3 real-time spots |
3 real-time spots |
| Area Measurements |
3 real-time areas |
3 real-time areas |
3 real-time areas |
| Isotherms / Color Alarms |
Above / Below / Inside range |
Same |
Same |
| Laser Distance Meter |
Yes (0.05–40 m, ±1% accuracy) |
Yes |
Yes |
Display & Imaging
| Specification |
E76 |
E86 |
E96 |
| Display |
4” 640 × 480 IPS touchscreen (Dragontrail™ glass) |
Same |
Same |
| Digital Camera |
5 MP with LED light |
Same |
Same |
| Image Modes |
Thermal, Visible, MSX®, Picture-in-Picture |
Same |
Same |
| Color Palettes |
Iron, White Hot, Black Hot, Arctic, Lava, Rainbow, High-Contrast Rainbow |
Same |
Same |
Data Storage & Connectivity
| Specification |
E76 |
E86 |
E96 |
| Storage Medium |
Removable SD card |
Same |
Same |
| Image File Format |
JPEG with measurement data |
Same |
Same |
| Radiometric Video |
Yes (.csq to SD or USB) |
Yes |
Yes |
| Video Streaming |
UVC / Wi-Fi |
Same |
Same |
| Interfaces |
USB 2.0, Bluetooth, Wi-Fi, DisplayPort (USB-C) |
Same |
Same |
Power & Environmental
| Specification |
E76 |
E86 |
E96 |
| Battery Type |
Rechargeable Li-ion (direct or dock charging) |
Same |
Same |
| Battery Operating Time |
Approx. 2.5 hours @ 25°C |
Same |
Same |
| Operating Temperature |
-15°C to +50°C |
Same |
Same |
| Storage Temperature |
-40°C to +70°C |
Same |
Same |
| Protection Rating |
IP54 |
IP54 |
IP54 |
| Shock / Vibration |
25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6) |
Same |
Same |
| Weight (incl. battery) |
Approx. 1 kg |
Approx. 1 kg |
Approx. 1 kg |
| Dimensions |
27.8 × 11.6 × 11.3 cm |
Same |
Same |
