Metal Push Button Switches
Product Category
Electrical & Electronic Components
Industrial Control & Automation Accessories
Panel Mount Push Button Switches
Product Overview
Metal Push Button Switches are durable, panel-mounted control components designed for industrial, commercial, and automation applications. Manufactured with high-quality stainless steel or aluminum housing, these push buttons provide long service life, reliable performance, and a modern appearance.

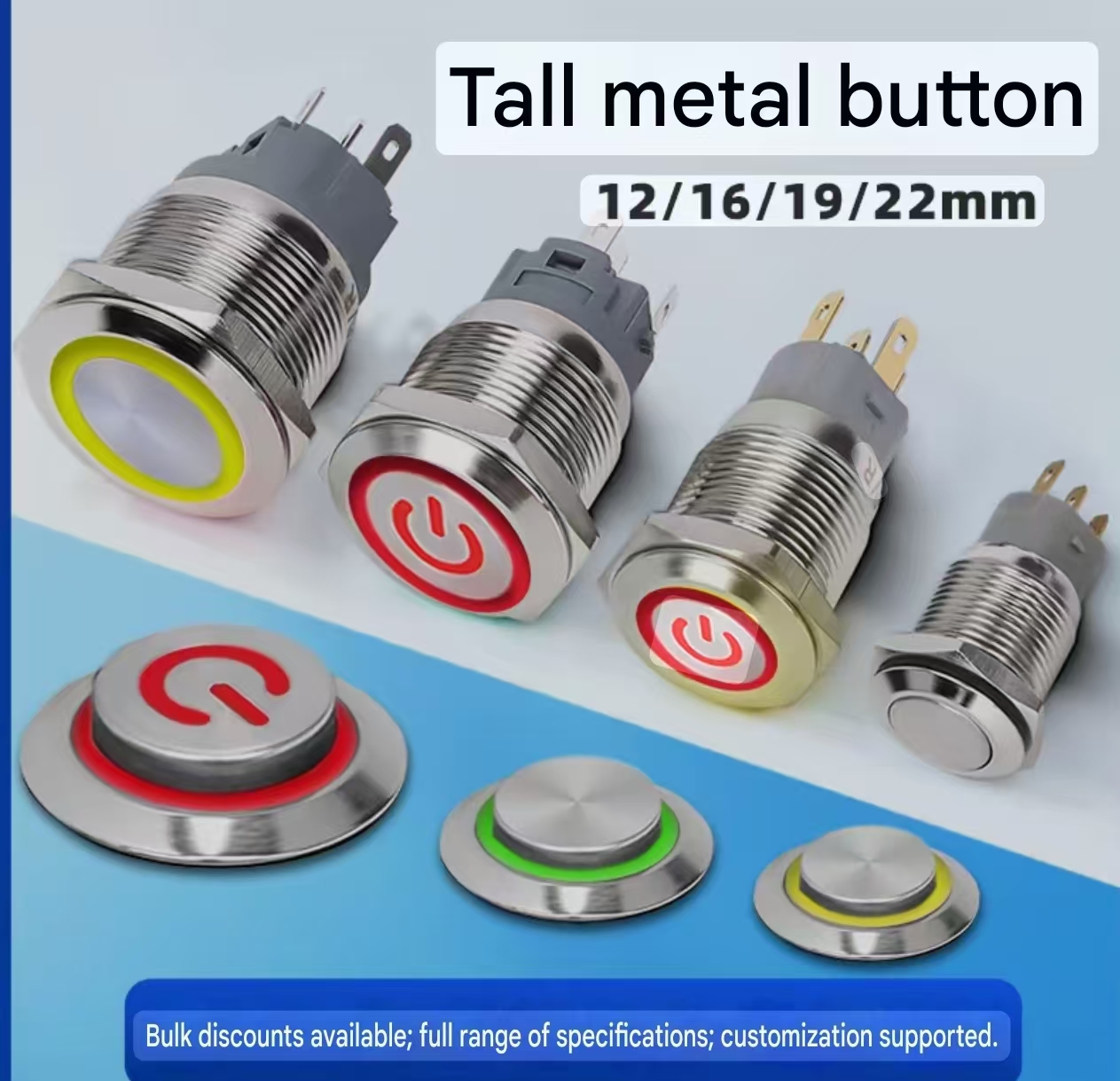

Available Sizes (Mounting Hole Diameter)
- 12 mm
- 16 mm
- 19 mm
- 22 mm
Types of Push Buttons

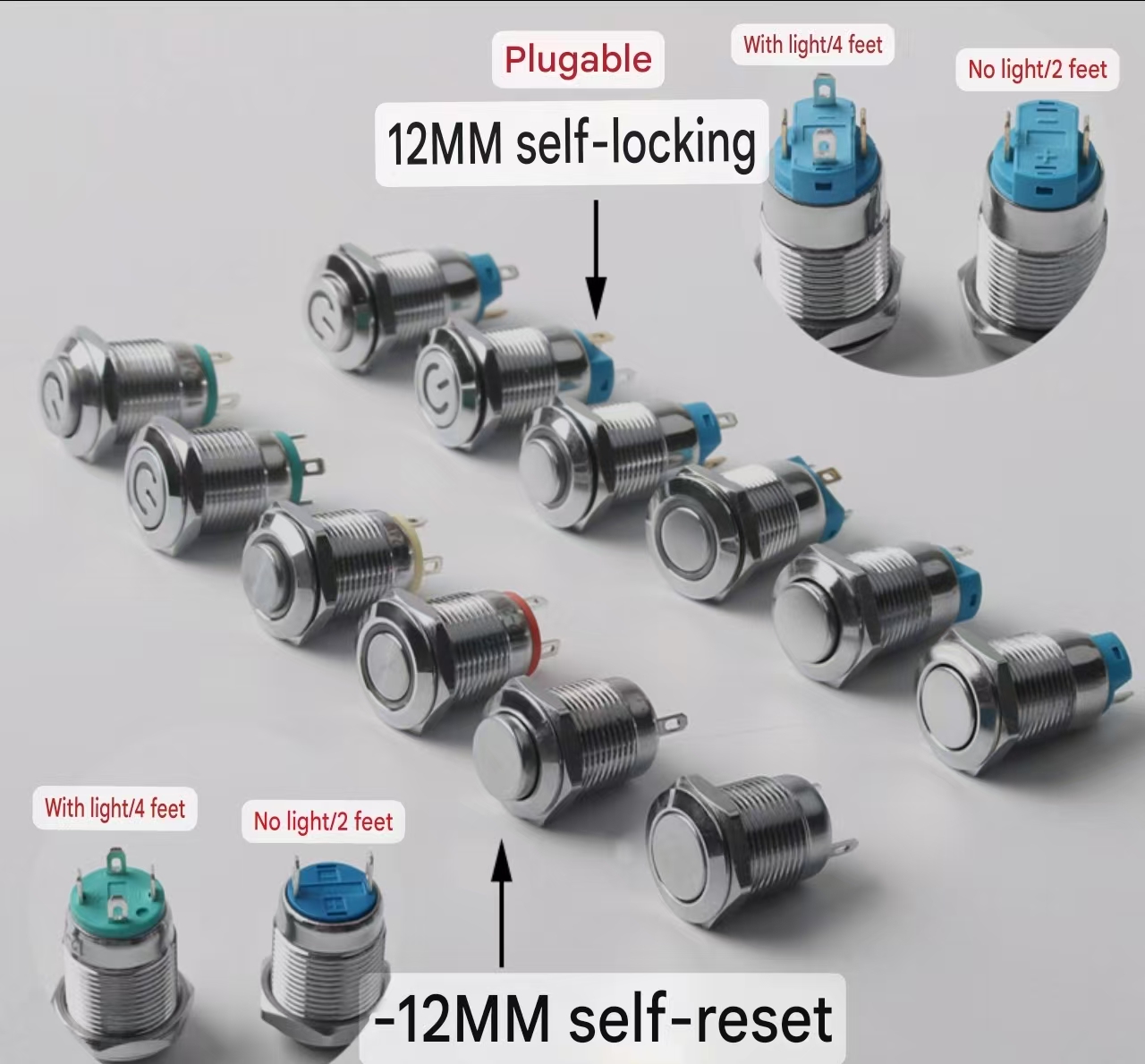

- Momentary Push Button
Returns to original position when released. Suitable for signal control.
- Latching (Self-Locking) Push Button
Press ON / Press OFF operation.

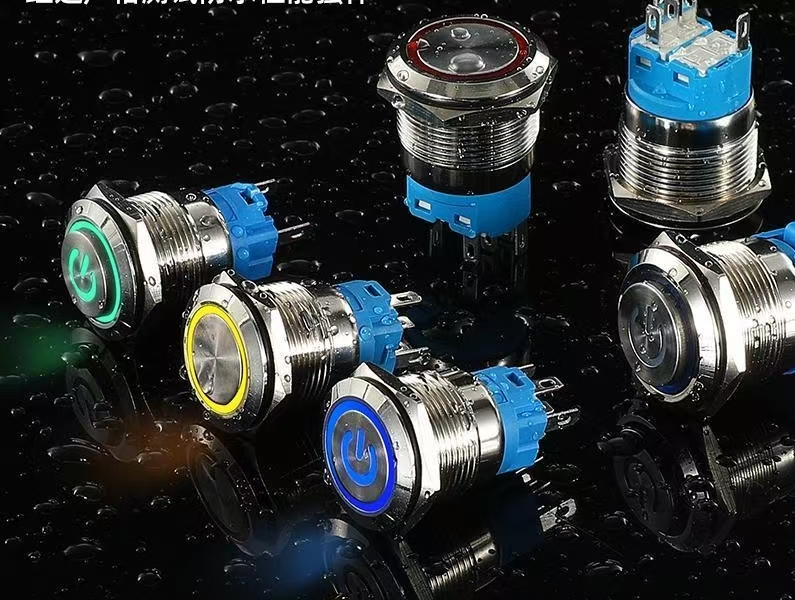

- Illuminated Push Button
Built-in LED ring or power symbol.
- Waterproof Push Button
Dust and water resistant design.
Key Features
- High-strength metal housing
- Smooth and reliable operation
- Long mechanical life
- Multiple contact configurations
- Easy panel mounting
- Customizable LED color and voltage
- Elegant brushed metal finish
Technical Specifications
| Parameter | Specification |
| Mounting Size | 12 / 16 / 19 / 22 mm |
| Housing Material | Stainless Steel / Aluminum |
| Button Type | Momentary / Latching |
| Contact Type | NO / NC / NO+NC |
| Rated Voltage | 12V / 24V / 110V / 220V AC/DC |
| LED Colors | Red, Green, Blue, Yellow, White |
| Protection Rating | IP65 / IP67 |
| Mechanical Life | ≥ 1,000,000 operations |
| Operating Temperature | -20°C to +55°C |
Applications
- Industrial control panels
- Automation systems
- Machinery and equipment
- Electrical cabinets
- Elevators and kiosks
