Power Quality Analyzer Kit – PQ3198 Series
Product Overview
The PQ3198 Series Power Quality Analyzer is a high-performance portable instrument designed for comprehensive monitoring and analysis of electrical power quality. It enables engineers and technicians to detect power disturbances, analyze harmonics, evaluate energy efficiency, and ensure electrical system reliability in industrial, commercial, and utility environments.
Available Models
| Model | Configuration |
| PQ3198 | Base analyzer kit |
| PQ3198-92 | Analyzer kit with AC current clamp sensors |

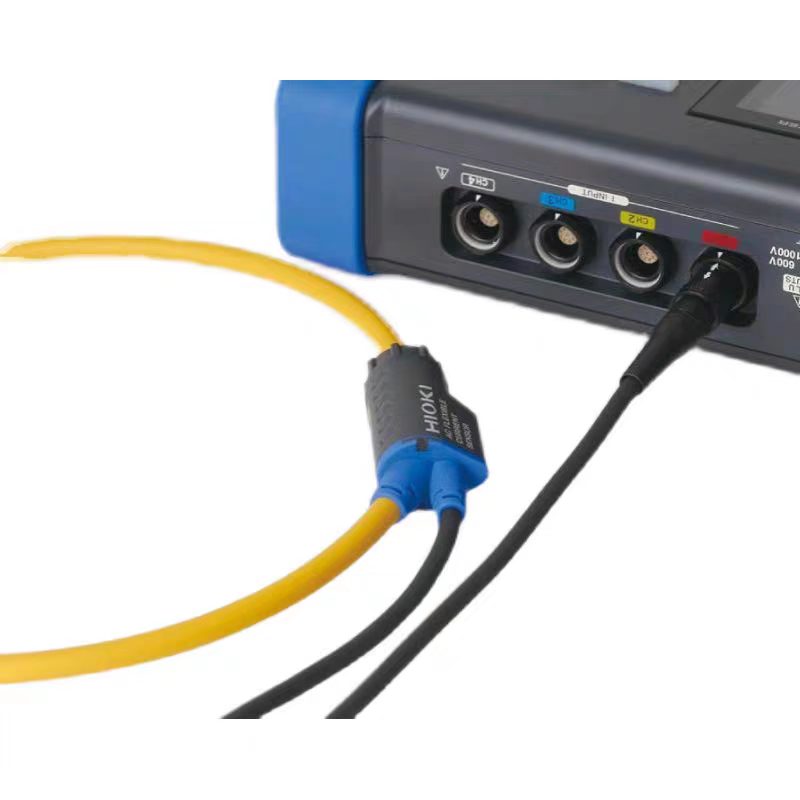

| PQ3198-94 | Analyzer kit with flexible AC current sensors |
Key Features
Accurate voltage, current, power, and energy measurement
Advanced power quality analysis and event recording
Real-time waveform and trend display
Harmonic and interharmonic analysis
Portable design with battery operation
PC software for data analysis and report generation
Technical Specifications
| Category | Specification |
| Measured Parameters | Voltage, Current, Frequency, Active Power (P), Reactive Power (Q), Apparent Power (S), Power Factor |
| Voltage Measurement | AC voltage measurement supported |
| Current Measurement | AC current via clamp or flexible sensors |
| Frequency Range | Power system frequency measurement |
| Harmonic Analysis | Voltage & current harmonics and interharmonics |
| THD Measurement | Voltage THD and Current THD |
| Power Quality Events | Voltage dips, swells, interruptions |
| Flicker Measurement | Supported |
| Transient Recording | Supported |
| Waveform Capture | Simultaneous voltage and current waveforms |
| Display | Color LCD display |
| Display Functions | Real-time waveform, trend, and numeric display |
| Data Storage | SD memory card supported |
| Communication Interface | USB connection |
| PC Software | PQ ONE analysis software |
| Report Generation | Supported via PC software |
| Power Supply | AC adapter |
| Battery Operation | Rechargeable battery pack |
| Operating Mode | Portable and desktop use |

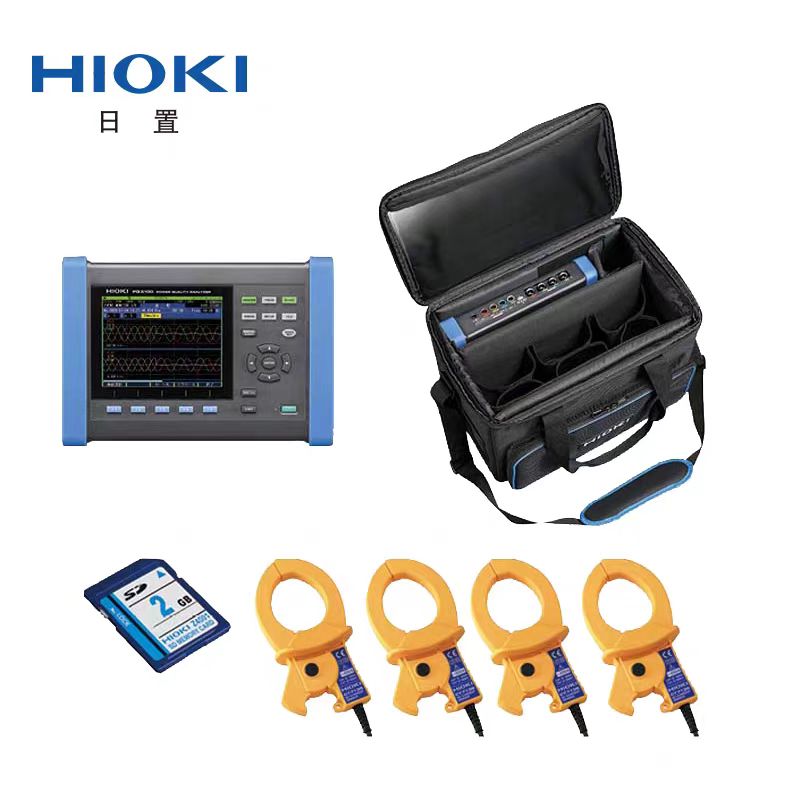

| Accessories Included | Voltage leads, current sensors (model dependent), SD card, USB cable, carrying case |
| Operating Applications | Industrial, commercial, and utility power systems |
Applications
Power quality monitoring and troubleshooting
Harmonic distortion analysis
Energy management and efficiency studies
Preventive maintenance and diagnostics
Utility and substation testing
Commercial and industrial electrical audits
Why Choose PQ3198 Series
All-in-one power quality analysis solution
High reliability and measurement accuracy
Flexible sensor options for different applications
Easy data analysis with professional software
