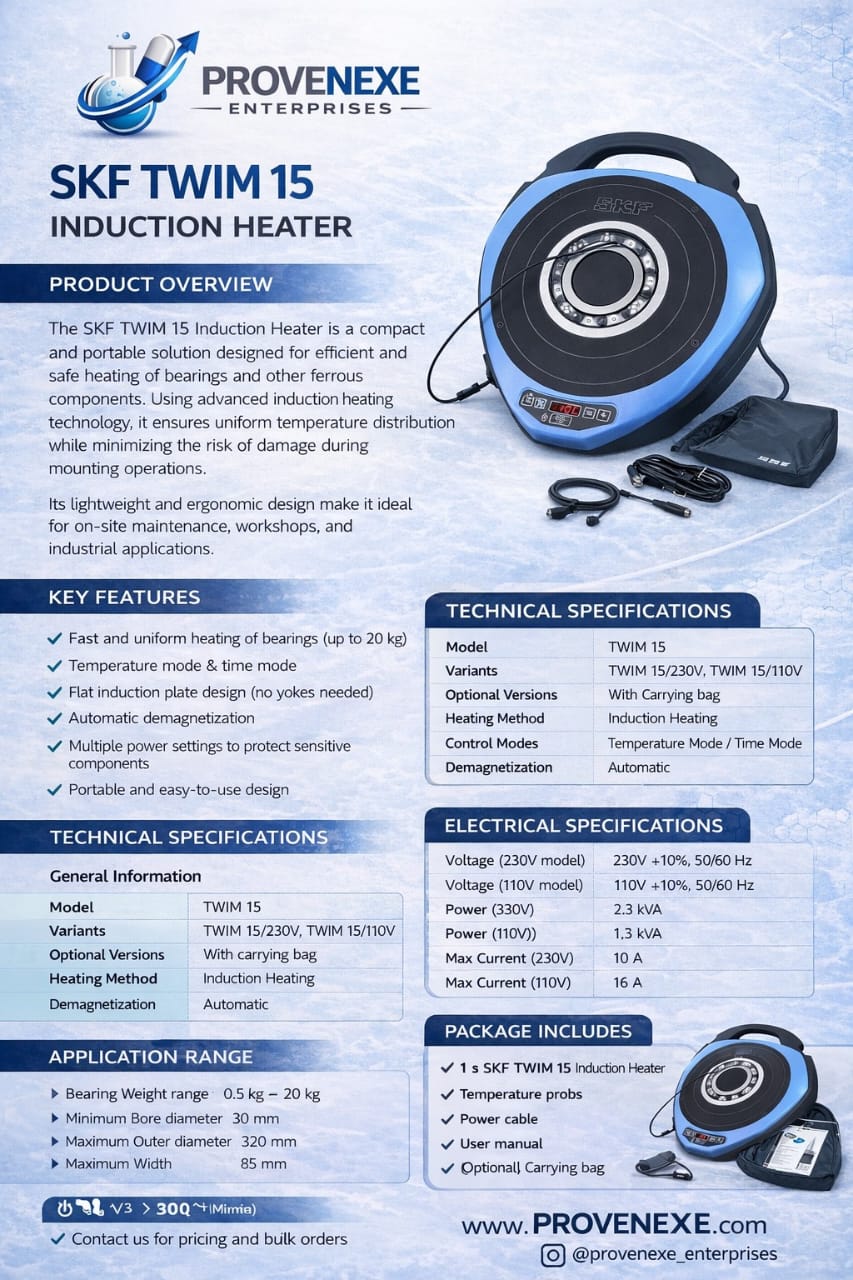

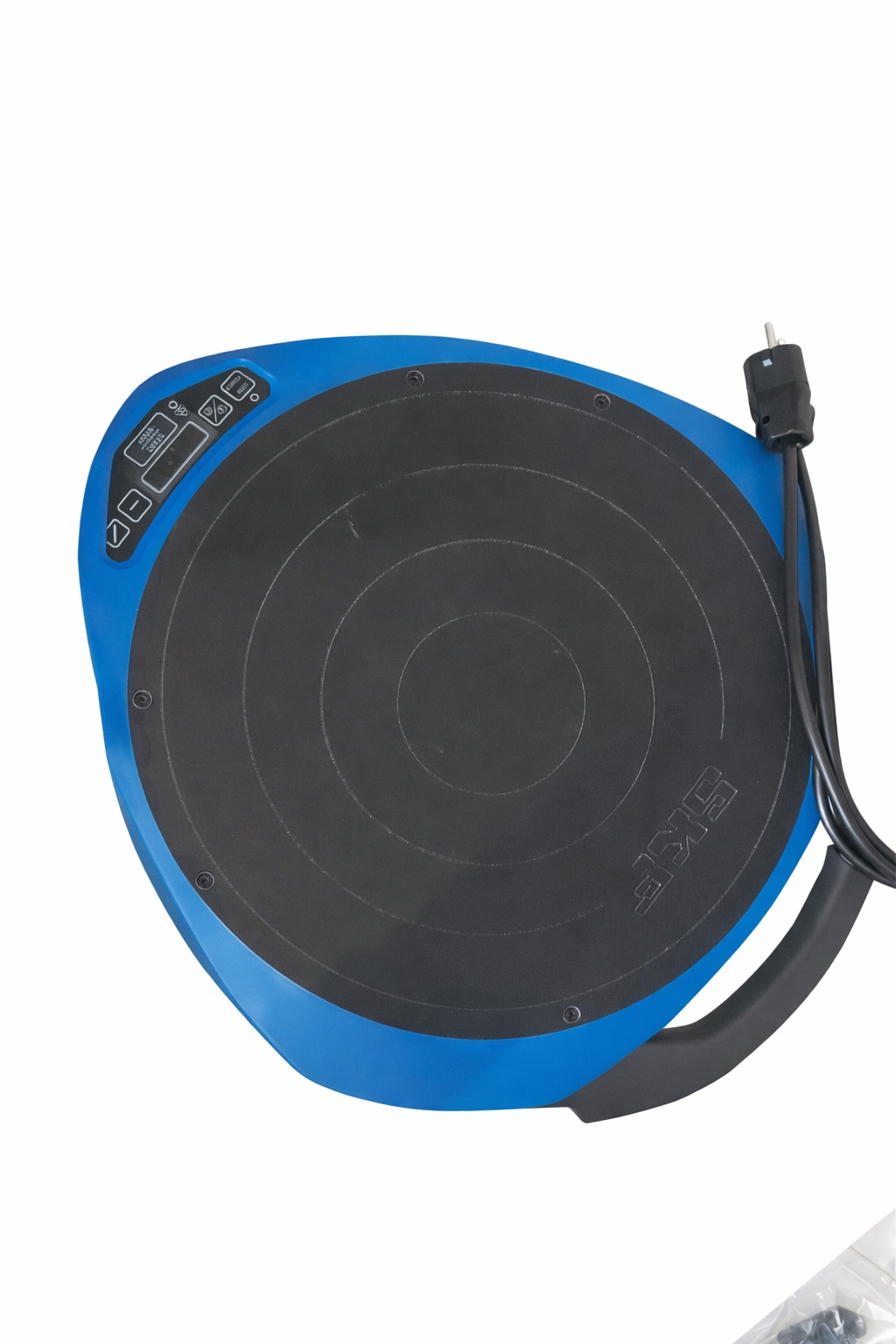

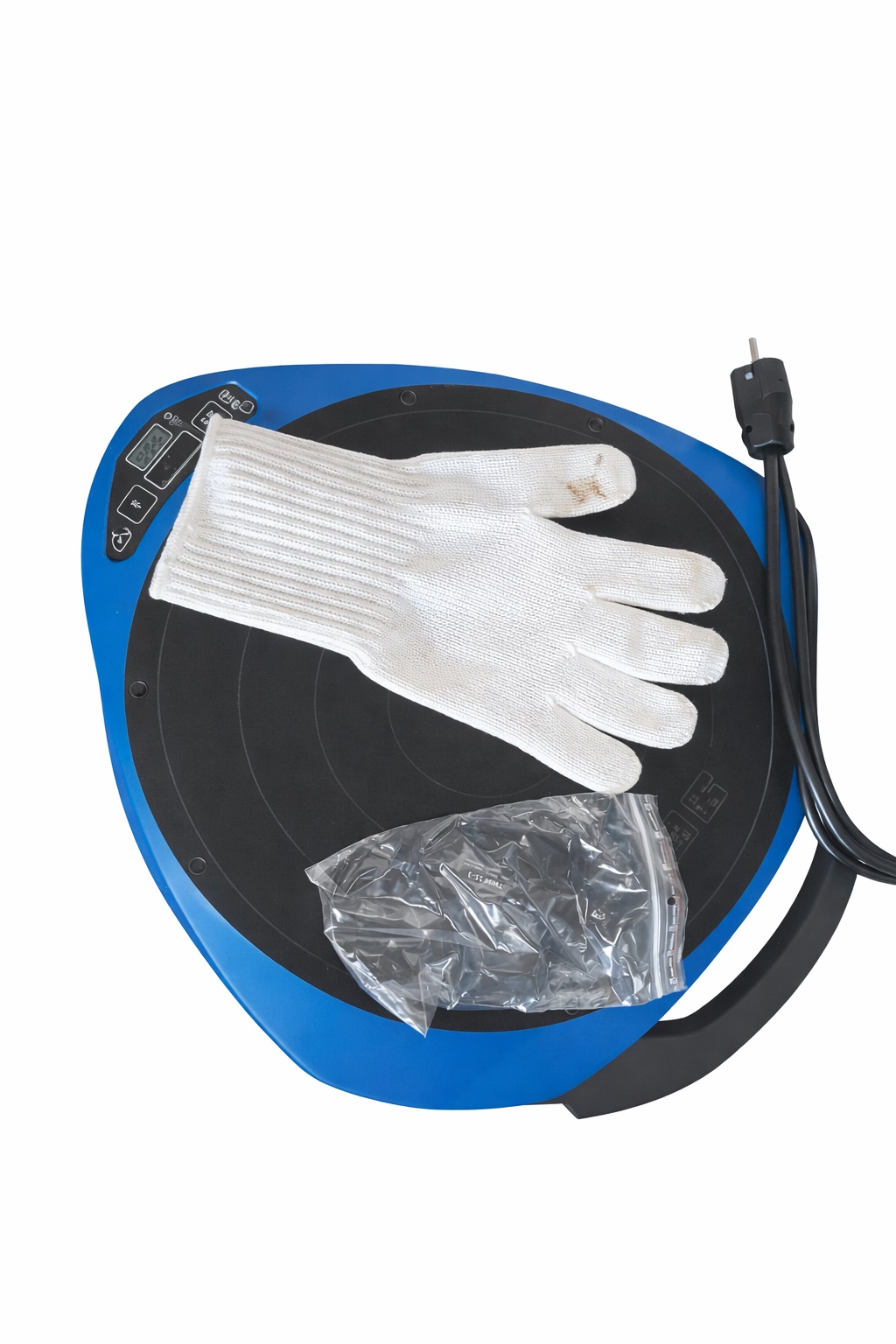

SKF TWIM 15 Induction Heater
Product Overview
The SKF TWIM 15 Induction Heater is a compact and portable solution designed for safe and efficient heating of bearings and ferrous components. It ensures uniform heating and reduces the risk of damage during installation.
Key Features
Fast and controlled heating, temperature and time modes, automatic demagnetization, portable design, and user-friendly operation.
General Information
| Parameter | Specification |
| Model | TWIM 15 |
| Variants | 230V / 110V |
| Heating Method | Induction |
| Control Modes | Temp / Time |
| Demagnetization | Automatic |
Application Range
| Parameter | Specification |
| Weight Range | 0.5 – 20 kg |
| Min Bore | 30 mm |
| Max OD | 320 mm |
| Max Width | 85 mm |
Electrical
| Parameter | Specification |
| Voltage | 230V / 110V |
| Power | 2.3 kVA / 1.8 kVA |
| Frequency | 50/60 Hz |
| Current | 10A / 16A |
Temperature Control
| Parameter | Specification |
| Range | 40 – 200°C |
| Units | °C / °F |
Physical
| Parameter | Specification |
| Dimensions | 450 × 500 × 100 mm |
| Weight | 6.6 kg |
