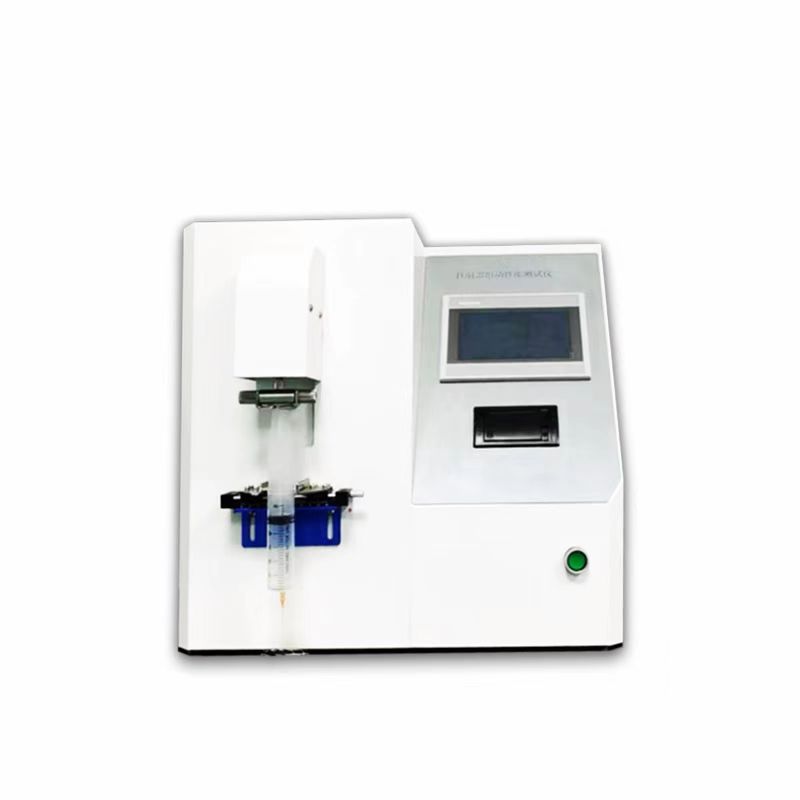

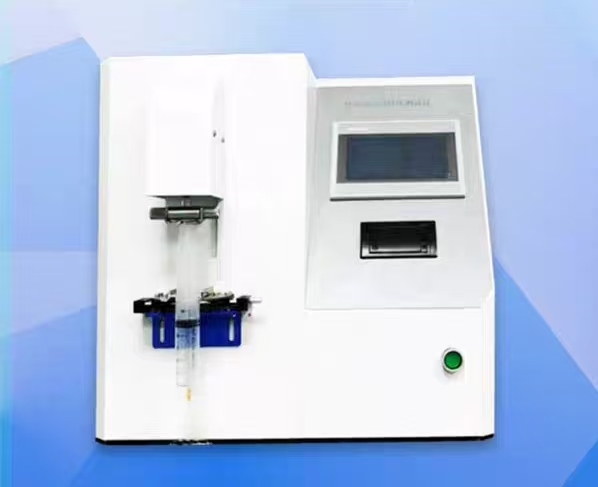

HBY-ZS04
Product Overview
The HBY-ZS04 Syringe Needle Tip Strength & Penetration Force Tester is a precision testing instrument designed to evaluate the penetration force and tip strength of syringe needles and cannulas. It applies a constant vertical load at a controlled speed to penetrate a standard aluminum foil sample, ensuring compliance with international and Chinese medical standards.
Applications
- Penetration force testing of syringe needles and cannulas
- Needle tip strength testing
- Quality control for disposable medical needles
- Compliance testing for medical device standards
- Applicable needle outer diameters: 0.18 mm – 3.4 mm
Compliant Standards
- GB 15810-2019 – Sterile Syringes for Single Use
- YY 0166-2002 – Suture Needles with Thread
- YY/T 0043-2016 – Medical Suture Needles
Key Features
- 7-inch industrial-grade color touch screen
- High-precision force sensor (0.01 N resolution)
- Servo motor with closed-loop control
- Automatic penetration travel recording
- Real-time force display and peak value capture
- Built-in micro printer
- Automatic test mode with one-key operation
- Power-off data protection
Technical Specifications
| Parameter | Specification |
| Needle Diameter Range | 0.18 – 3.4 mm |
| Force Range | 0 – 50 N |
| Force Resolution | 0.01 N |
| Speed Range | 0 – 100 mm/min |
| Test Stroke | 0 – 100 mm |
| Electrode Voltage | DC 12 V |
| Aluminum Foil | 50 μm, 99.8% purity |
| Display | 7-inch color touch screen |
| Power Supply | AC 220V ±10%, 50Hz |
| Power Consumption | 450 W |
| Dimensions | 550 × 500 × 540 mm |
| Weight | 42 kg |
