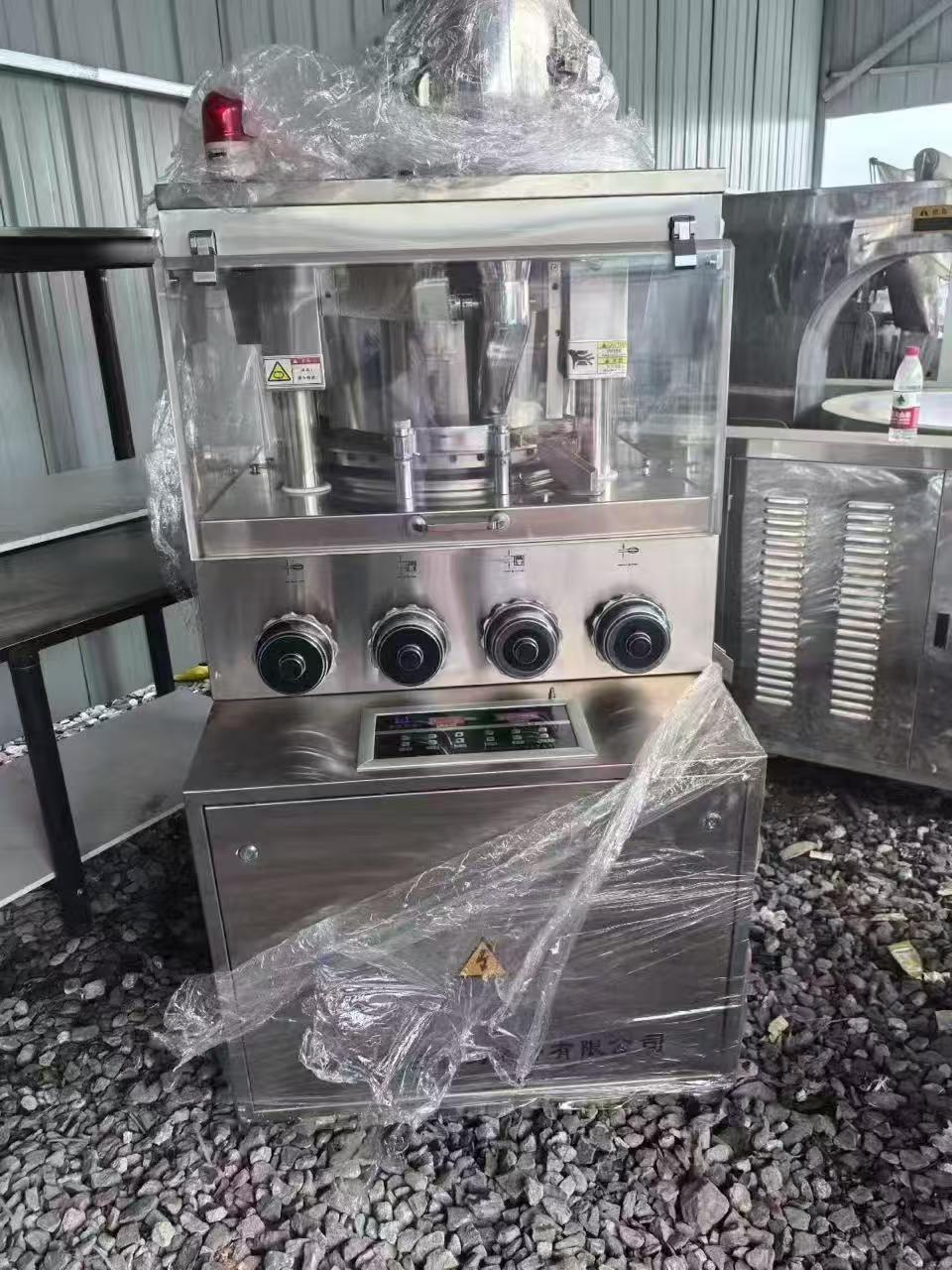

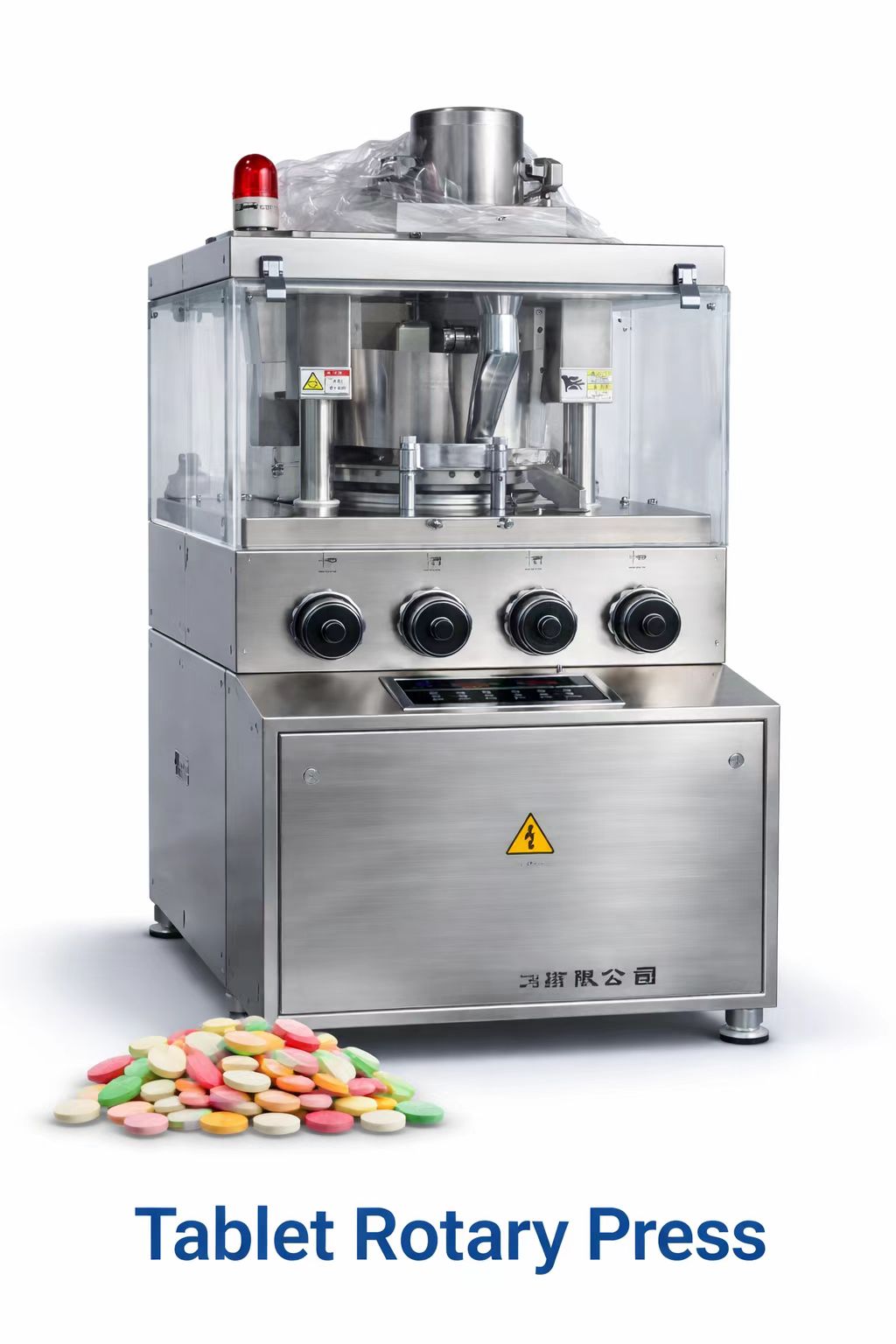

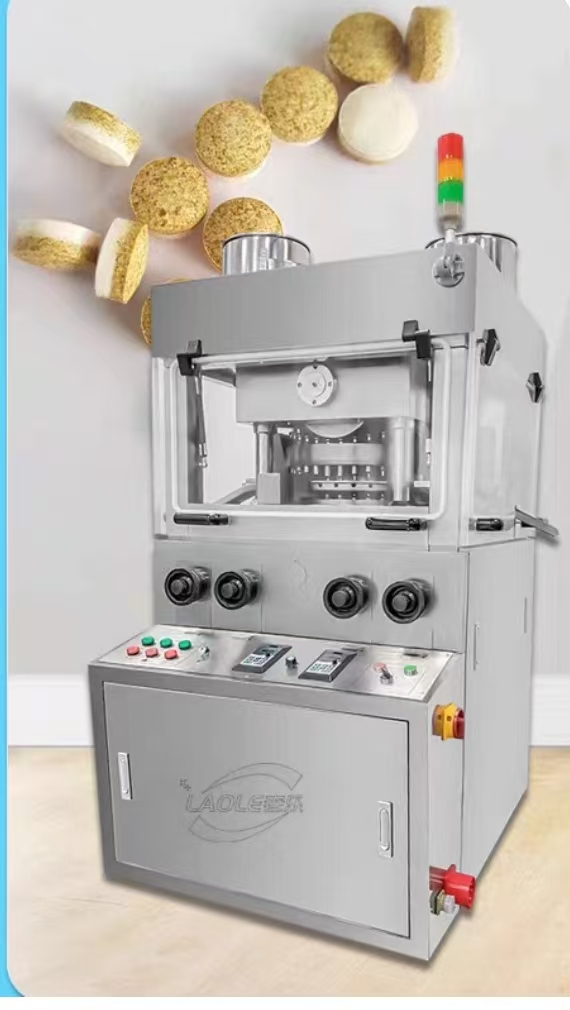

The Tablet Rotary Press Machine is a high-performance, GMP-compliant tablet compression system designed for continuous and high-volume tablet production. It is widely used in pharmaceutical, nutraceutical, food, chemical, and veterinary industries. The machine ensures uniform tablet weight, thickness, and hardness through precision rotary compression technology.
Built with stainless steel contact parts and advanced safety enclosures, the rotary press offers stable operation, low noise, and easy maintenance. User-friendly controls allow precise adjustment of speed and compression force, ensuring consistent product quality and reliable long-term performance.
Technical Specifications
| Parameter | Specification |
| Machine Type | Rotary Tablet Press |
| Operation Mode | Automatic |
| Compliance | GMP Standard |
| Voltage / Cycle | 220V / 380V, 50Hz |
| Compression Force | Up to 120 kN |
| Max Tablet Diameter | Up to 25 mm |
| Max Tablet Thickness | Up to 6–8 mm |
| Production Capacity | Up to 120,000 tablets/hour |
| Number of Stations | Multiple options available |
| Speed Control | Variable |
| Control Type | Digital / PLC (Optional) |
| Construction Material | Stainless Steel |
| Noise Level | Low Noise Operation |
| Safety Features | Emergency Stop, Safety Interlocks |
| Dust Control | Optional Dust Extraction |
| Cooling System | Air Cooled |
| Machine Finish | Polished Stainless Steel |
| Certification | CE (Optional) |
| Customization | Available Upon Request |
Applications
- Pharmaceutical tablet manufacturing
- Nutraceutical & dietary supplement production
- Herbal & ayurvedic tablets
- Food & confectionery tablets
- Chemical & industrial tablets
- Veterinary medicine production
Key Features
- High-speed rotary tablet compression system
- Uniform tablet weight, thickness, and hardness
- GMP-compliant stainless steel contact parts
- Transparent safety enclosure for process visibility
- User-friendly control panel for speed and pressure adjustment
- Low vibration and noise operation
- Quick punch & die replacement
- Emergency stop and built-in safety interlocks
- Compact, durable, and easy-to-maintain design
