Underground Cable & Pipe Locator

Professional Utility Detection System (Transmitter + Receiver)



1. Product Overview

The Underground Cable & Pipe Locator is designed to accurately detect and trace underground power cables, communication lines, metal pipes, and other buried utilities. The system consists of a signal transmitter and a signal receiver, providing precise route tracking, depth measurement, and fault location for underground infrastructure.

Widely used by:

• Power Utilities
• Telecommunication Companies
• Municipal Engineering Departments
• Construction & Civil Contractors
• Industrial Maintenance Teams

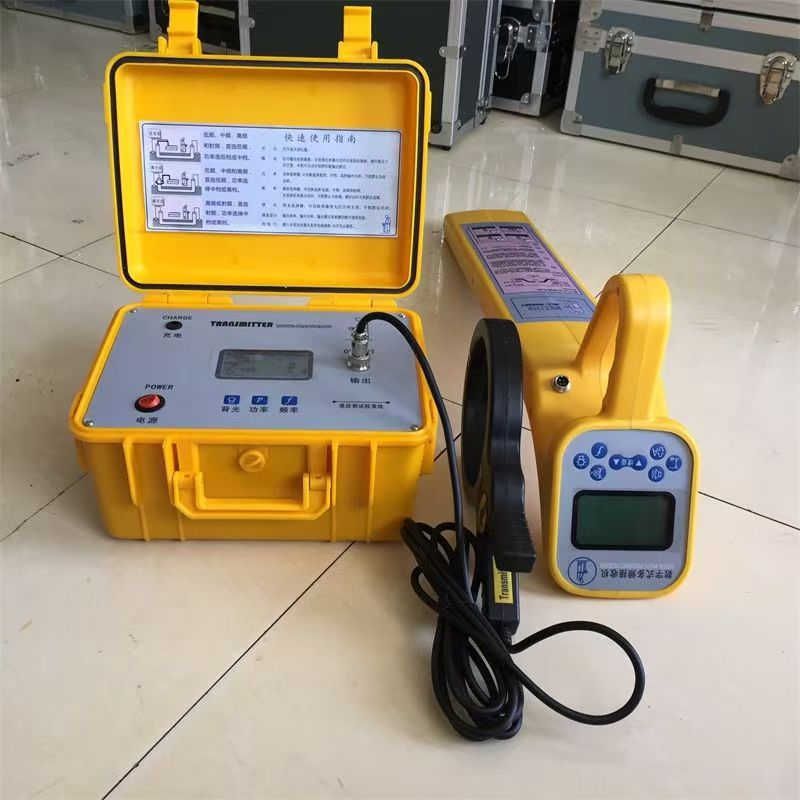

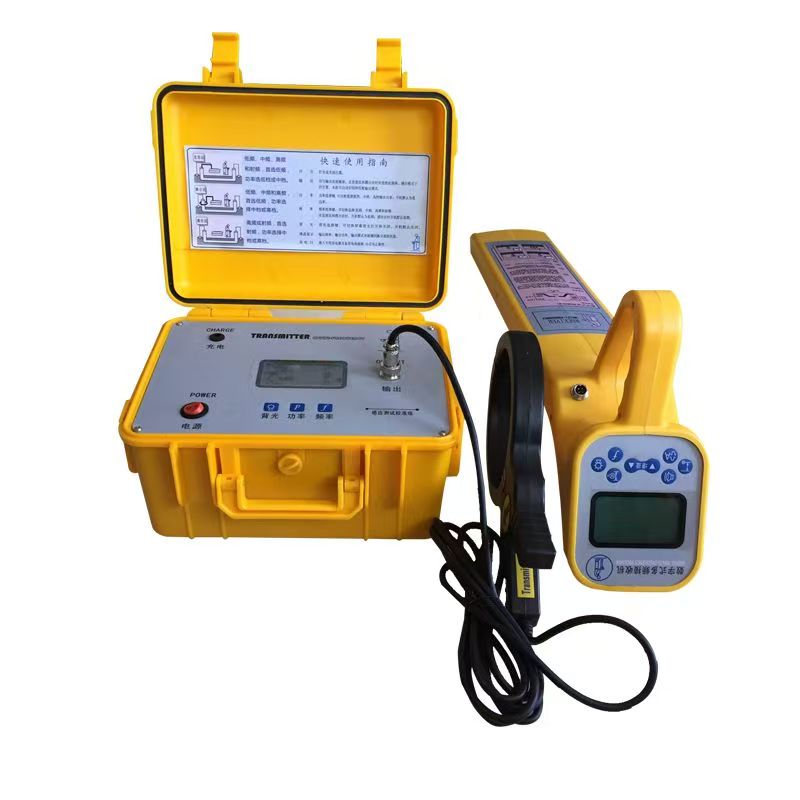

2. System Configuration

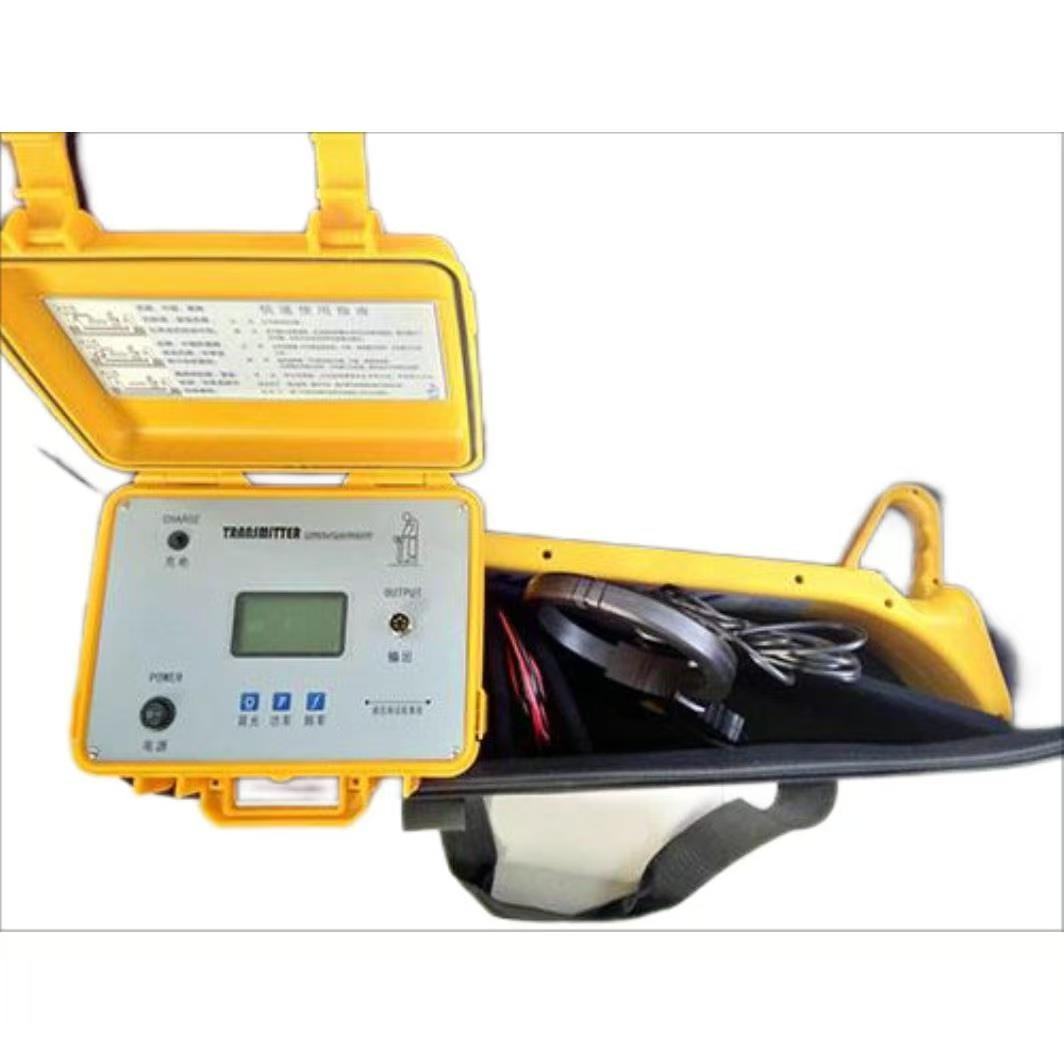

• Signal Transmitter (Portable Case Type)
• Signal Receiver (Handheld Type)
• Connection Cables & Ground Rod
• Rechargeable Lithium Battery
• Carrying Case

3. Technical Specifications – Transmitter

Output Signal Modes: Low / Medium / High Frequency / RF / Insulation Fault Detection

Output Power Levels: High / Medium / Low (Adjustable)

Output Methods: Direct Connection / Clamp Coupling / Induction Mode

Impedance Display: 0 – 2500 Ω

Load Matching: Automatic

Display: Backlit LCD

Battery: 18650 Rechargeable Lithium Battery (Approx. 500 charge cycles)

Working Time: >8 hours

Operating Temperature: -10°C to +45°C

Dimensions: 277 × 227 × 153 mm

Weight: Approx. 3.5 kg

4. Technical Specifications – Receiver

Receiving Frequencies: Low / Medium / High / RF / 50Hz Passive Mode

Detection Modes: Peak Mode / Null Mode / Depth Mode / Current Measurement Mode

Signal Indication: Digital Display + Bar Graph + Audio Tone

Display: High-Brightness LCD (Sunlight Readable)

Gain Control: Manual Adjustment (0 – 100 dB)

Maximum Tracing Distance:

– Direct Mode: Up to 15 km

– Coupling Mode: Up to 3 km

– Induction Mode: Up to 300 m

Depth Measurement Range: 0 – 300 cm (Direct/Coupling), Up to 600 cm (Induction)

Depth Accuracy: ±2.5% ± 5 cm (0–2 m range)

Current Measurement Range: 0 – 999 mA

Battery: 18650 Rechargeable Lithium Battery

Standby Time: >12 hours

Operating Temperature: -10°C to +40°C

Dimensions: 650 × 110 × 32 mm

Weight: Approx. 1.6 kg

5. Key Features

• High-Accuracy Underground Route Detection
• Multiple Frequency Selection
• Automatic Impedance Matching
• Long Distance Tracing Capability
• Depth & Current Measurement Function
• Sunlight Readable Display
• Compact & Portable Design

6. Applications

• Underground Power Cable Detection
• Communication Cable Tracing
• Metal Water & Gas Pipe Location
• Cable Fault Pre-Location
• Construction Site Survey
• Municipal Underground Utility Mapping
