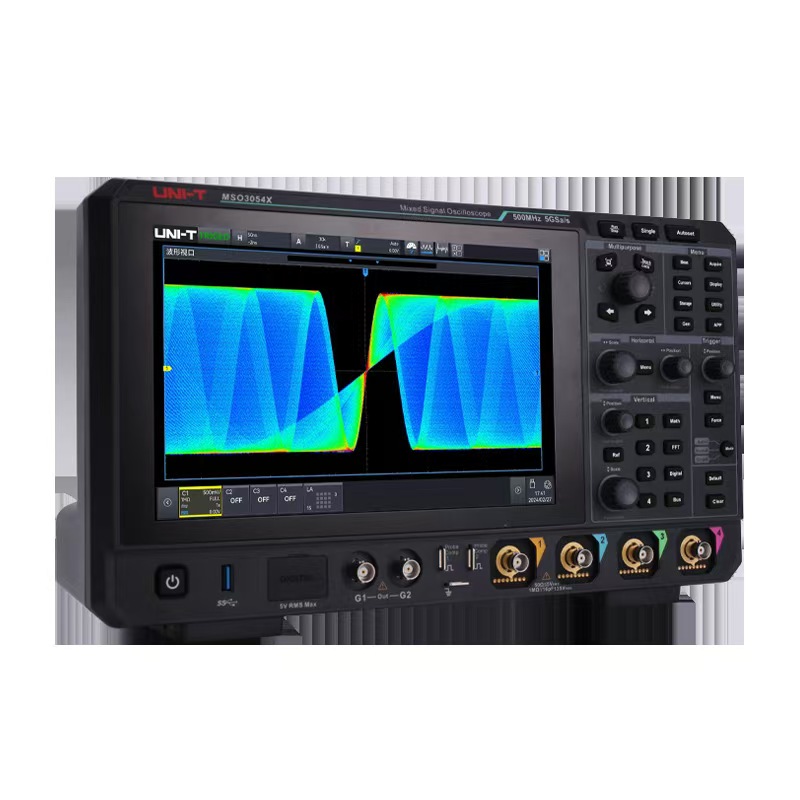

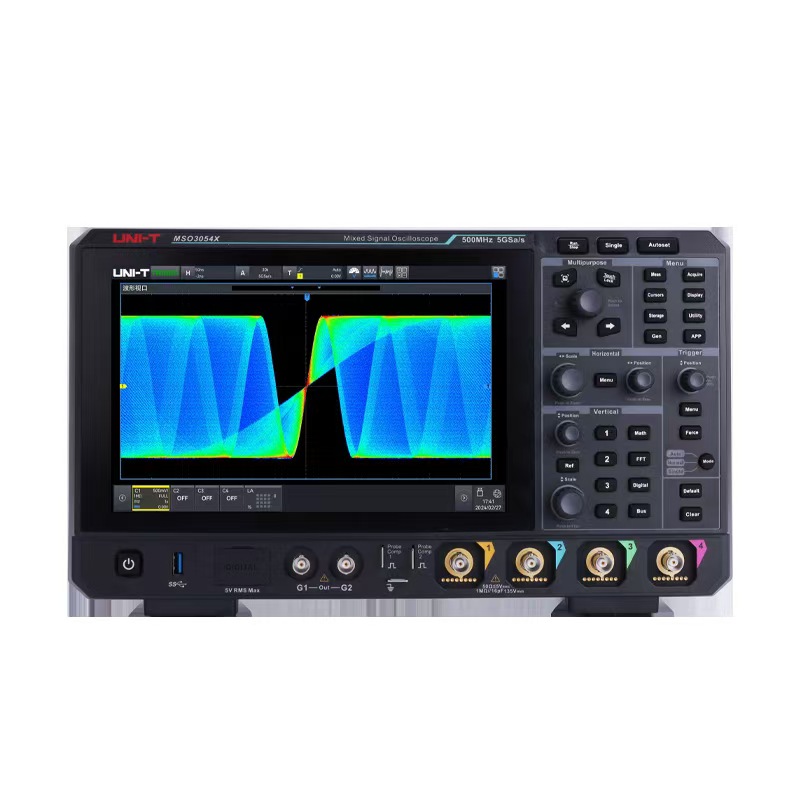

UNI-T MSO3054 Mixed Signal Oscilloscope
By Provenexe Enterprises
Product Overview
The UNI-T MSO3054 is a high-performance mixed signal oscilloscope designed for advanced signal analysis in electronics design, debugging, and testing. With wide bandwidth, high sampling rate, and powerful decoding capabilities, it is ideal for engineers, R&D laboratories, manufacturing, and educational institutions.
Key Features
- 500 MHz bandwidth with excellent signal integrity
- Real-time sampling rate up to 5 GSa/s
- 4 analog channels plus 16 digital logic channels
- Advanced trigger functions and serial bus decoding
- Built-in arbitrary waveform generator (AWG)
- Large high-resolution TFT LCD display
- Powerful math, FFT, and waveform analysis functions
Applications
- Embedded system debugging
- Power electronics testing
- Communication signal analysis
- Automotive electronics diagnostics
- Industrial control systems
- Research and development laboratories
- Education and technical training
Technical Specifications
| Parameter | Specification |
| Model | MSO3054 |
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Real-Time Sampling Rate | Up to 5 GSa/s |
| Record Length | Up to 500 Mpts |
| Display | High-resolution TFT LCD |
| Trigger Types | Edge, Pulse, Video, Slope, Pattern, Serial Bus |
| Serial Bus Decode | I²C, SPI, UART/RS-232, CAN, LIN, FlexRay (optional) |
| Waveform Generator | Built-in AWG |
| Measurement Functions | Automatic, Cursor, Math, FFT |

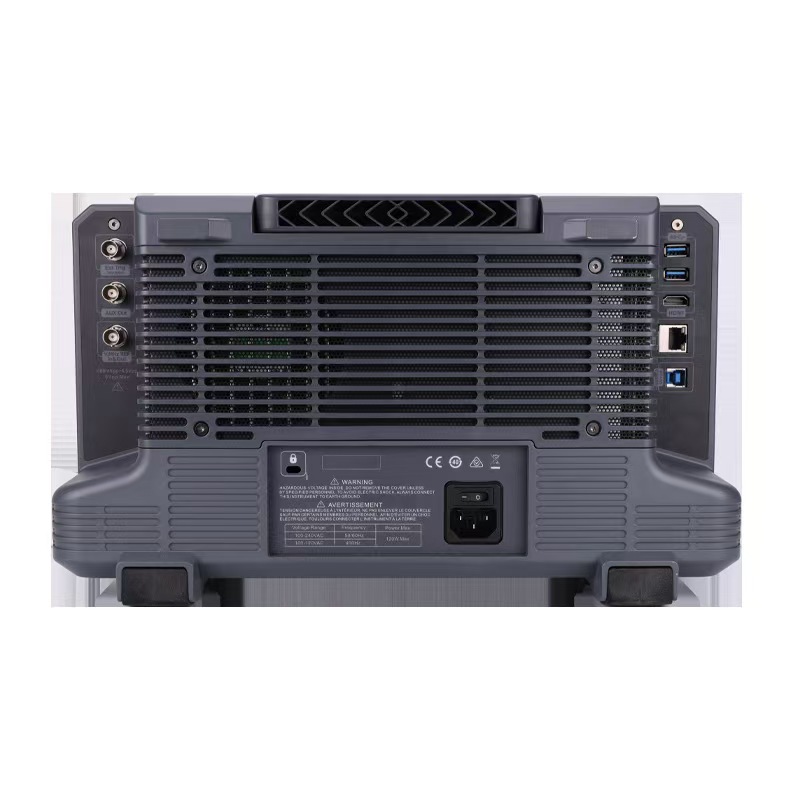

| Interface | USB Host/Device, LAN |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Environment | Laboratory and industrial use |
Standard Accessories
- Power cable
- Test probes
- User manual
- Calibration certificate
Optional Accessories
- Logic analyzer probes
- Advanced serial decoding licenses
- Communication analysis packages
Why Choose UNI-T MSO3054?
The UNI-T MSO3054 provides a powerful combination of performance, versatility, and value, making it a reliable solution for professional signal measurement and analysis across a wide range of applications.
